How is the internal wiring connected on Brass Monkey caravan fridges GH1676 / GH678?

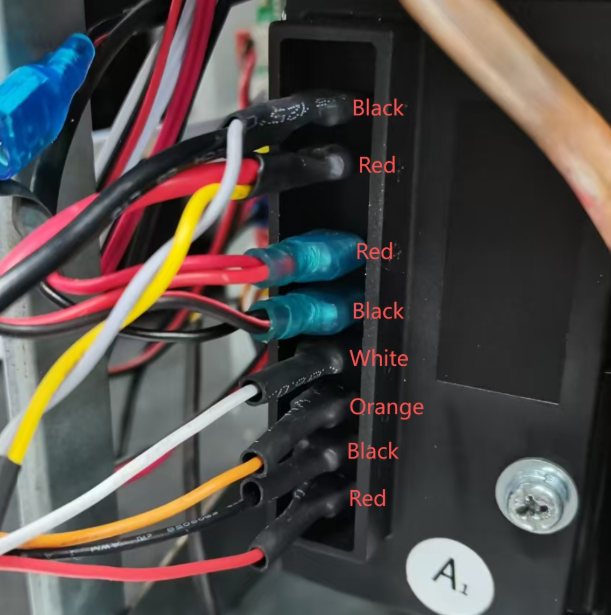

If you have disconnected any of the internal wires that connect to the controller with spade plugs, reconnect them as per the diagram below.
