Neptune 4 Max TL4976 Type-C - Exploded Parts Views

Updated

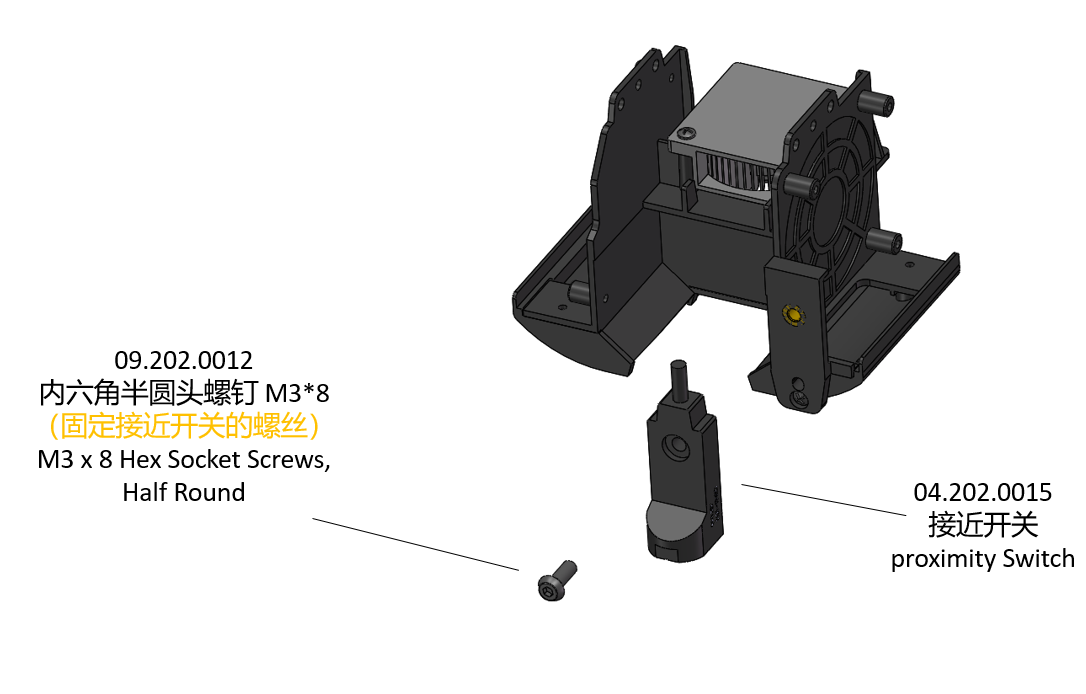

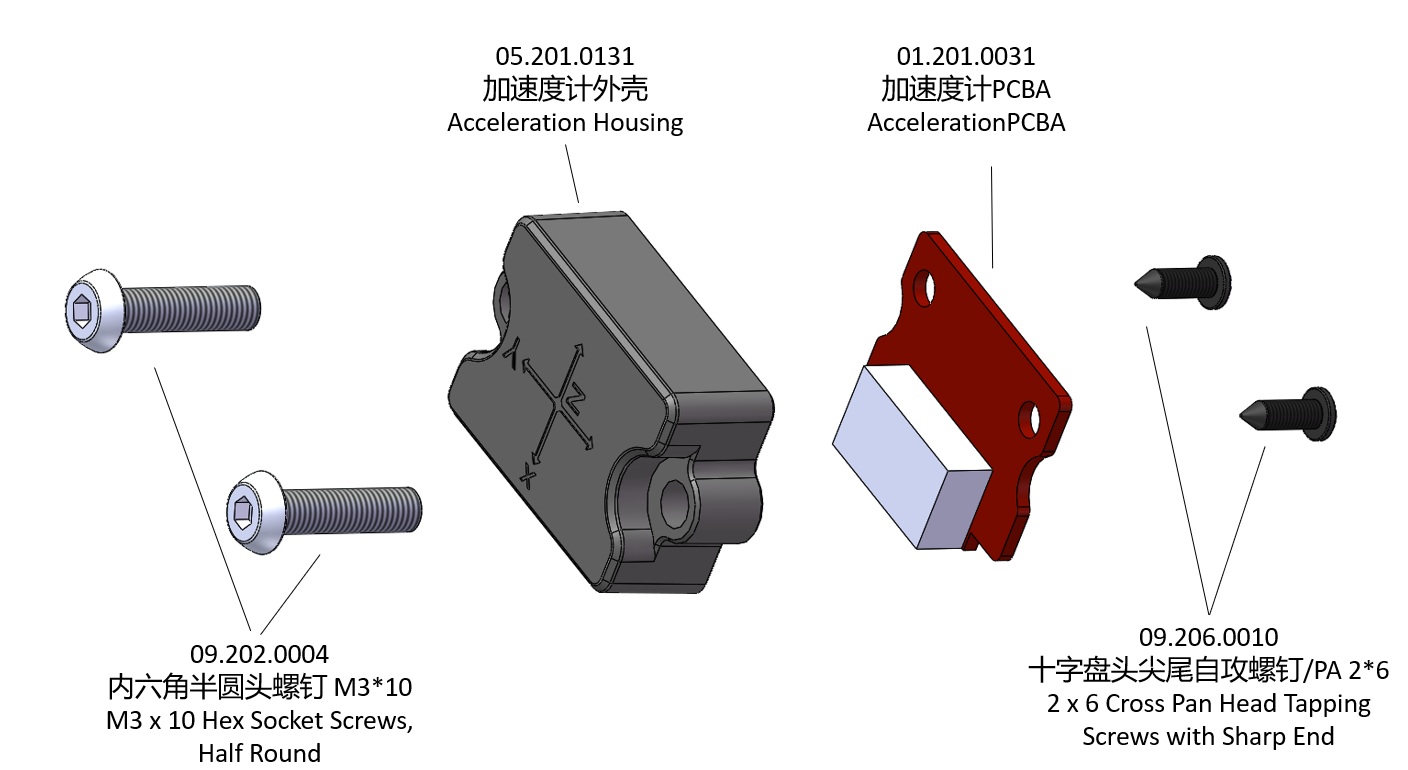

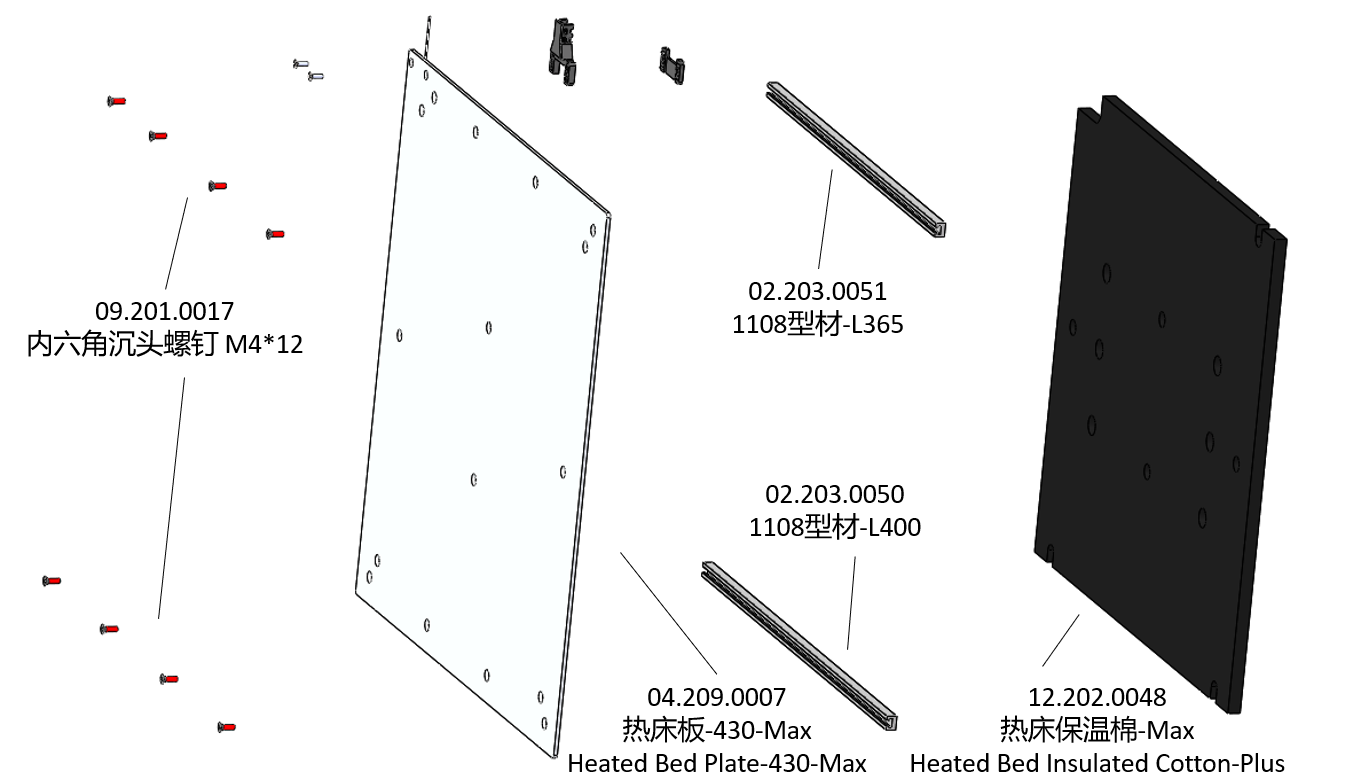

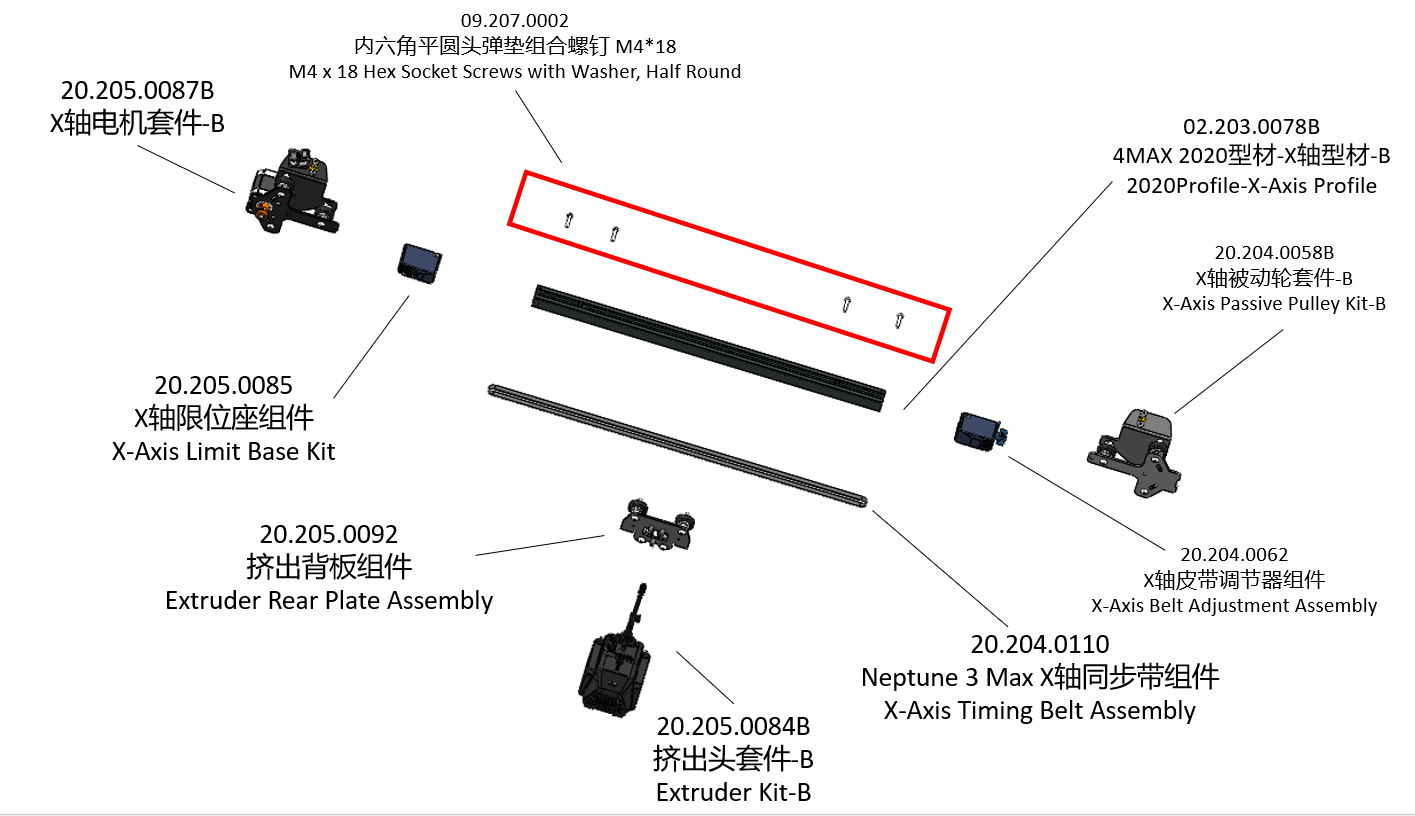

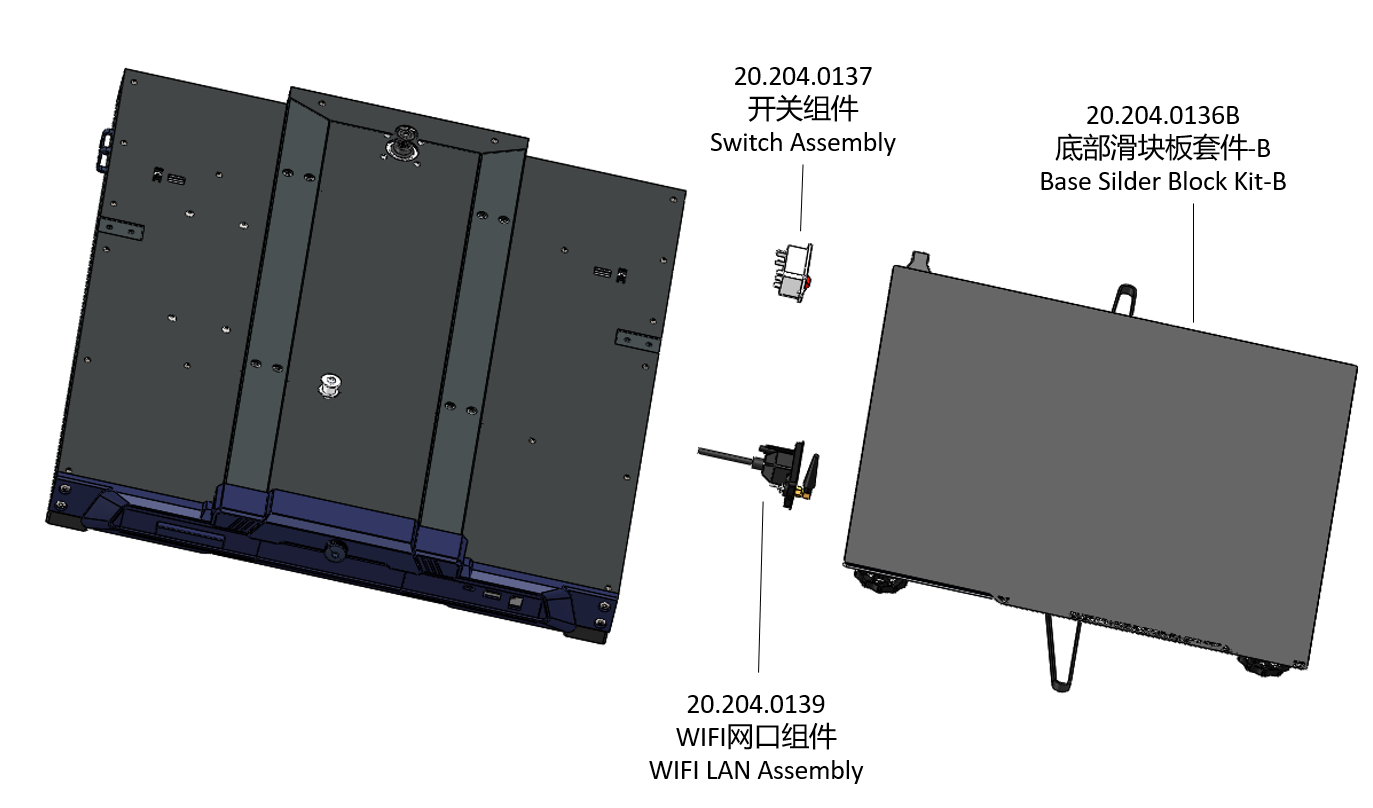

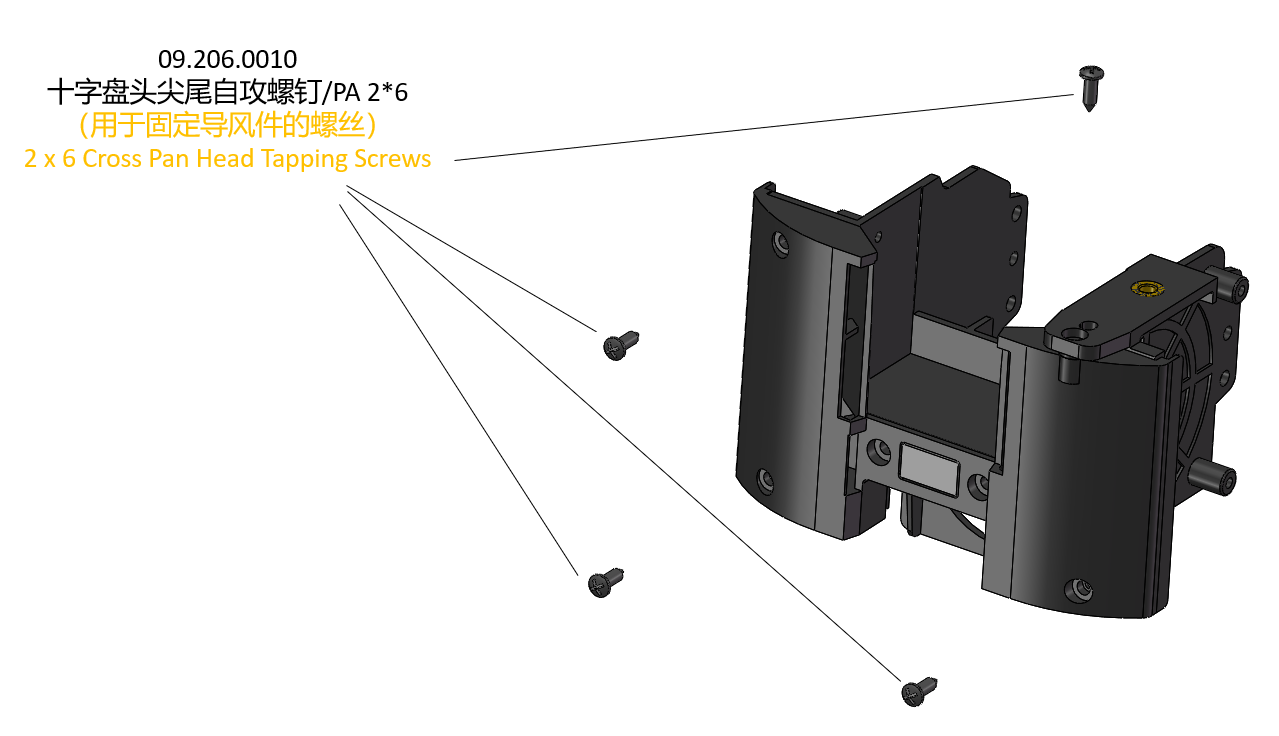

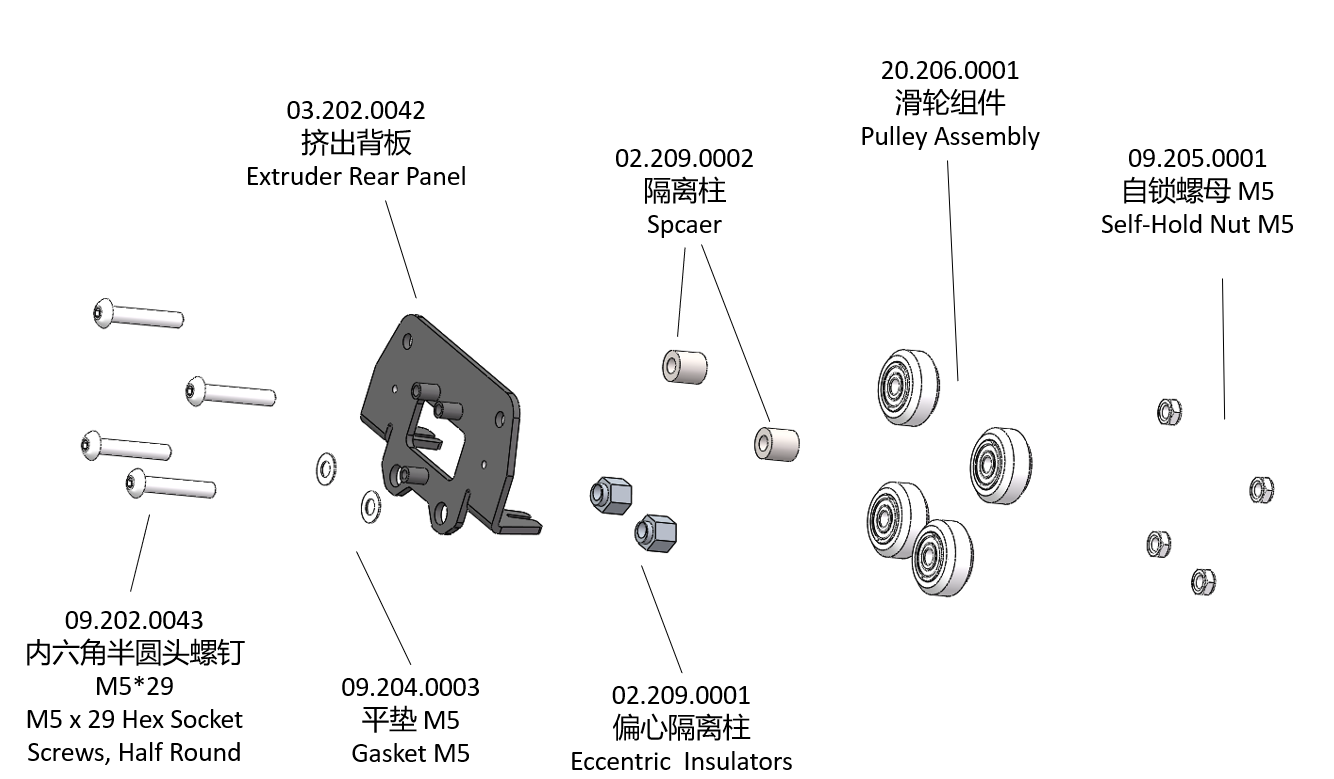

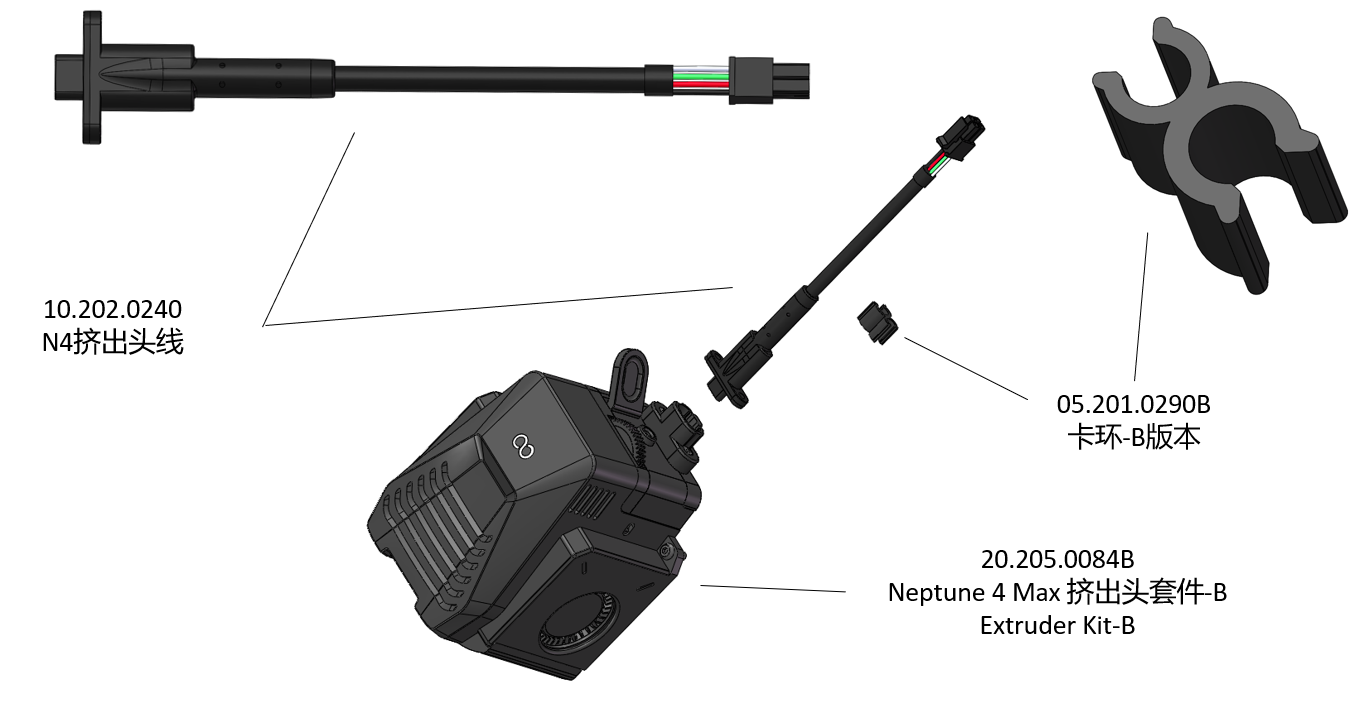

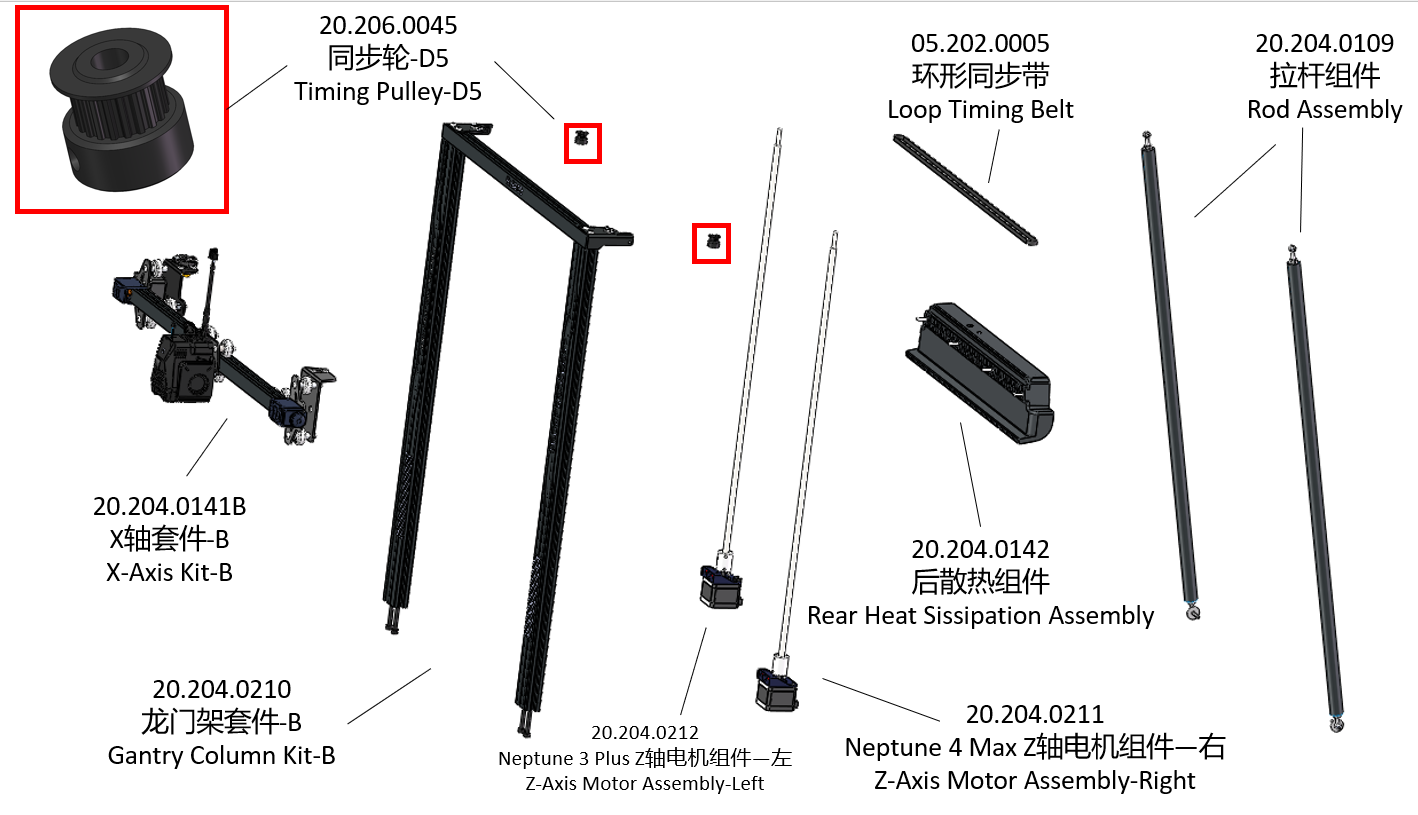

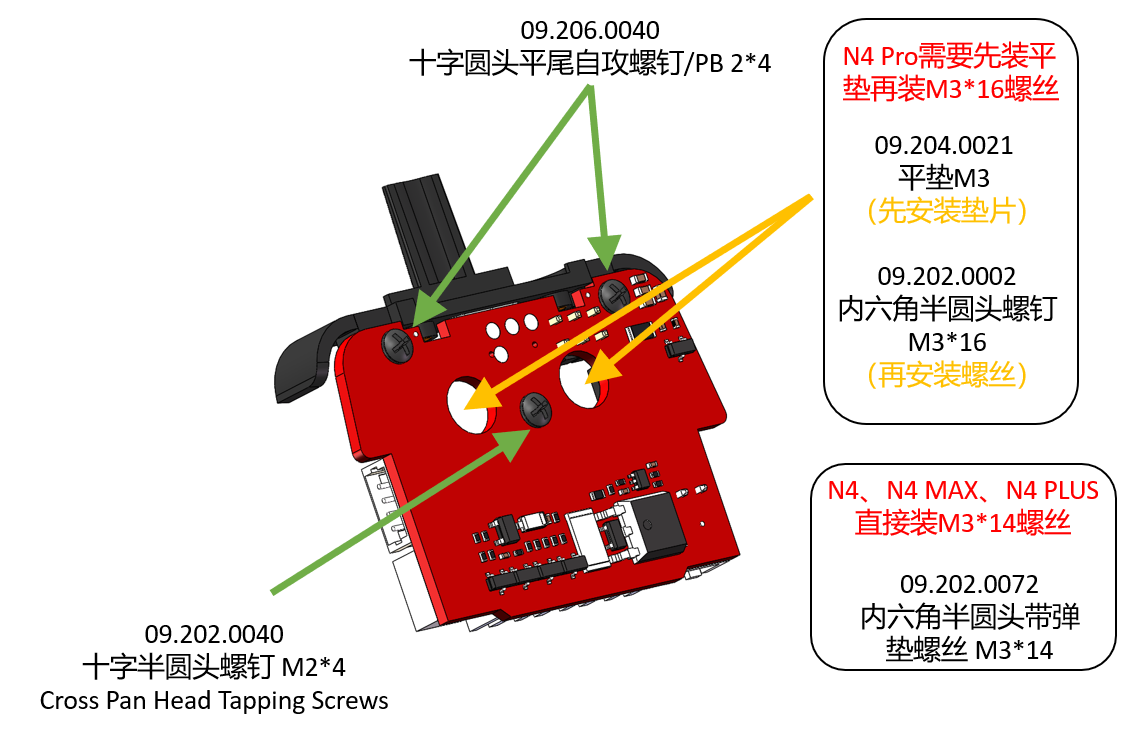

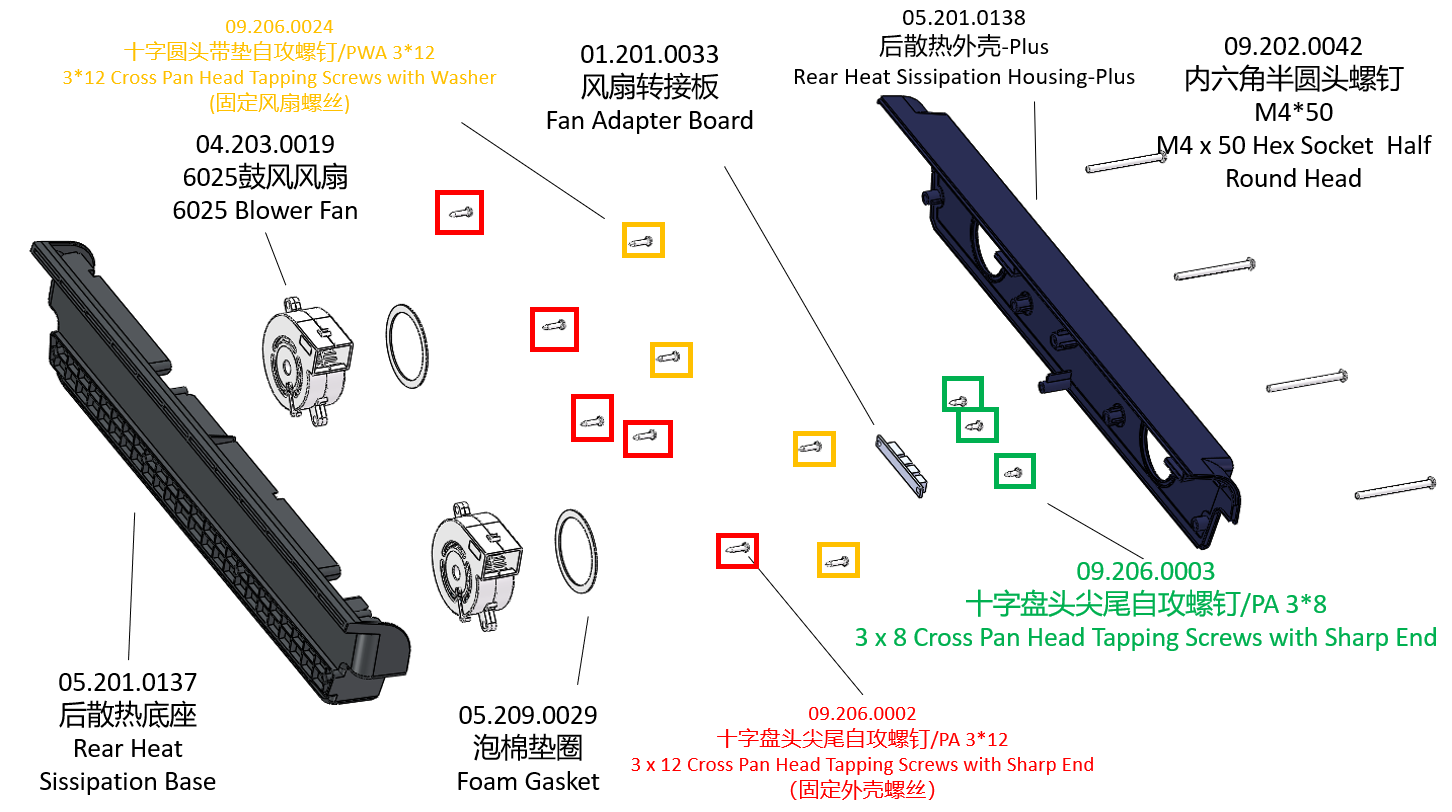

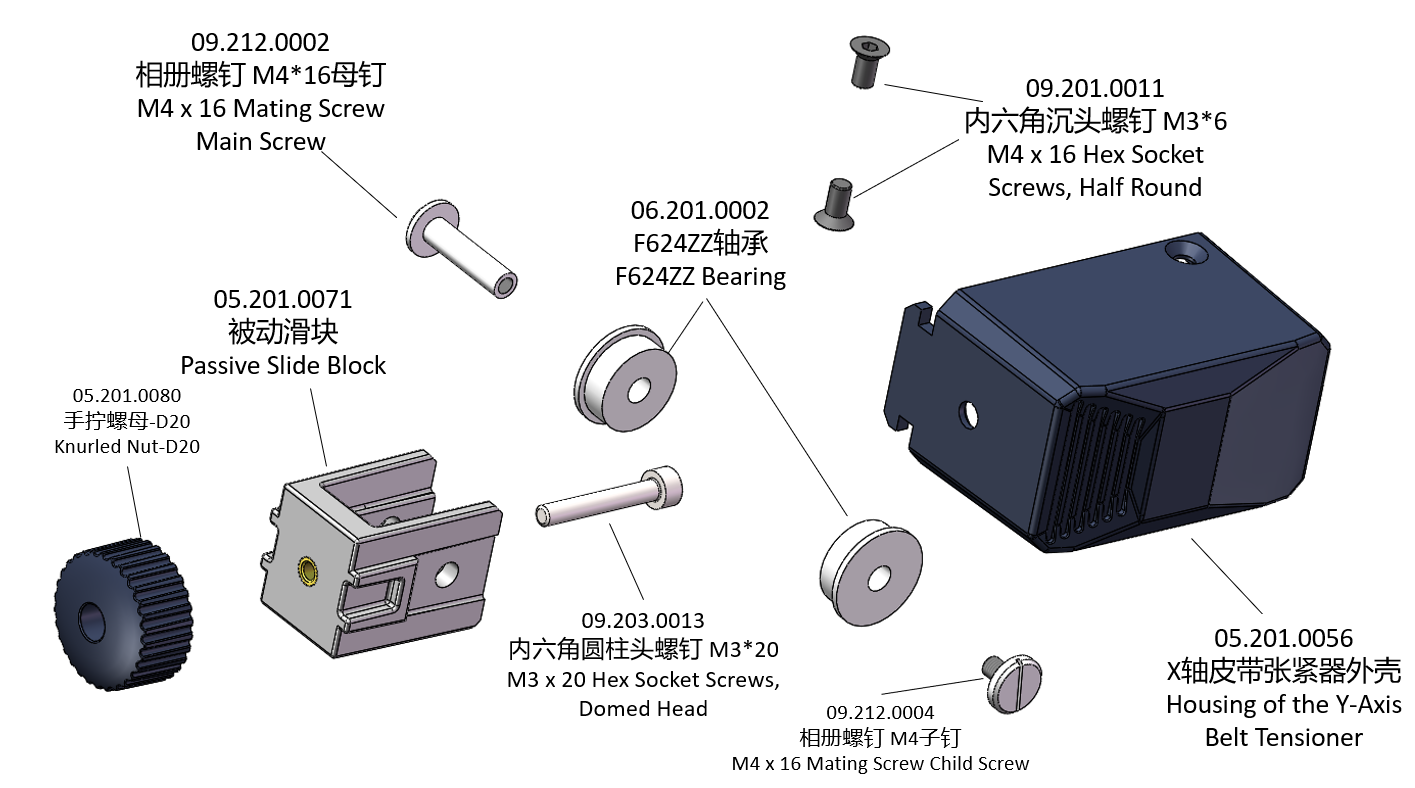

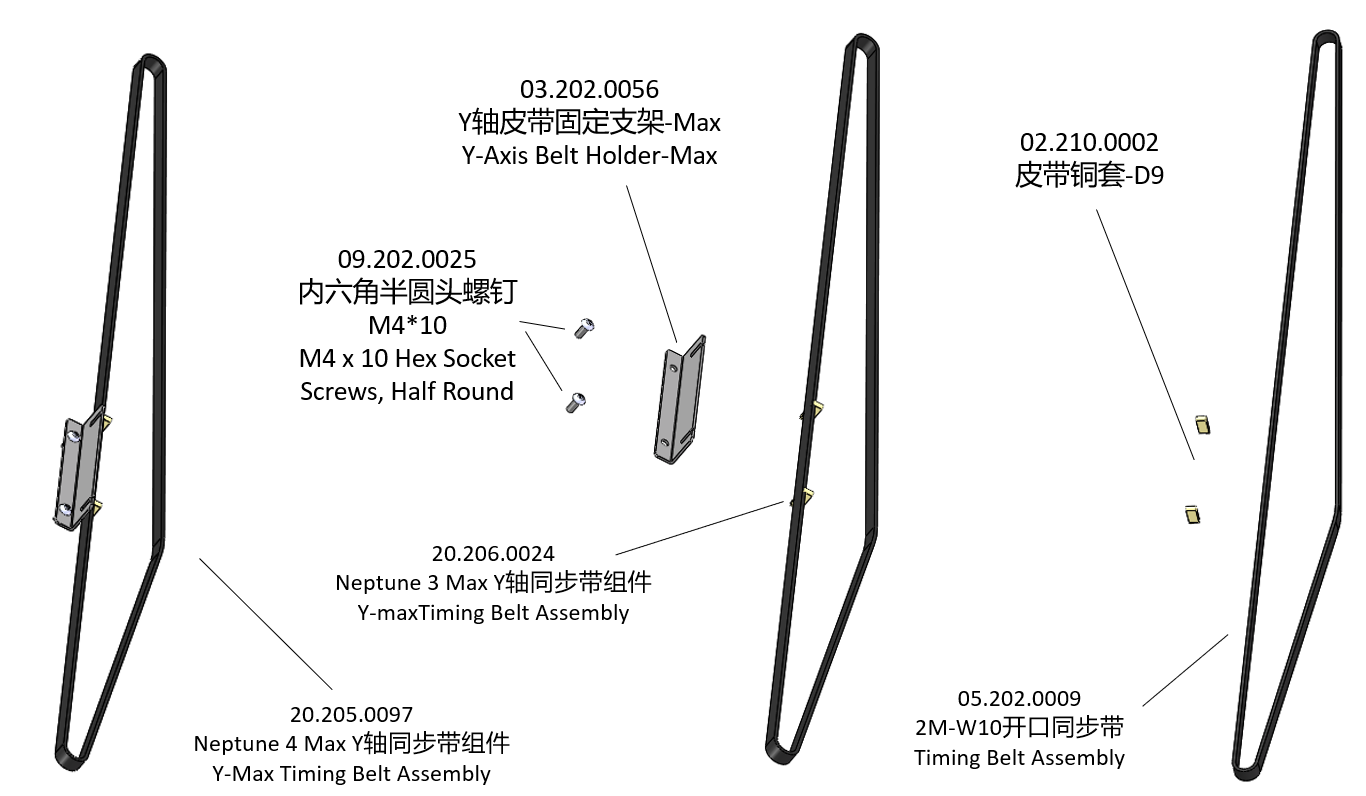

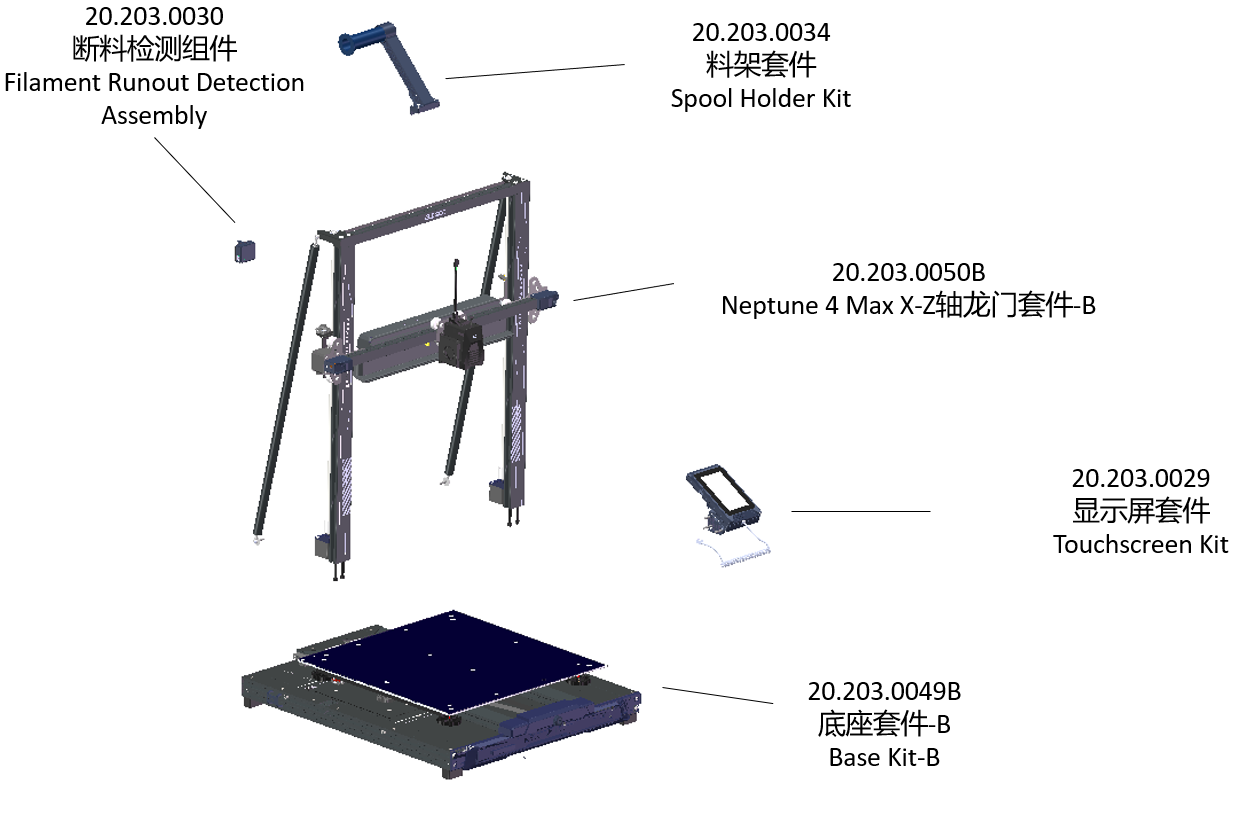

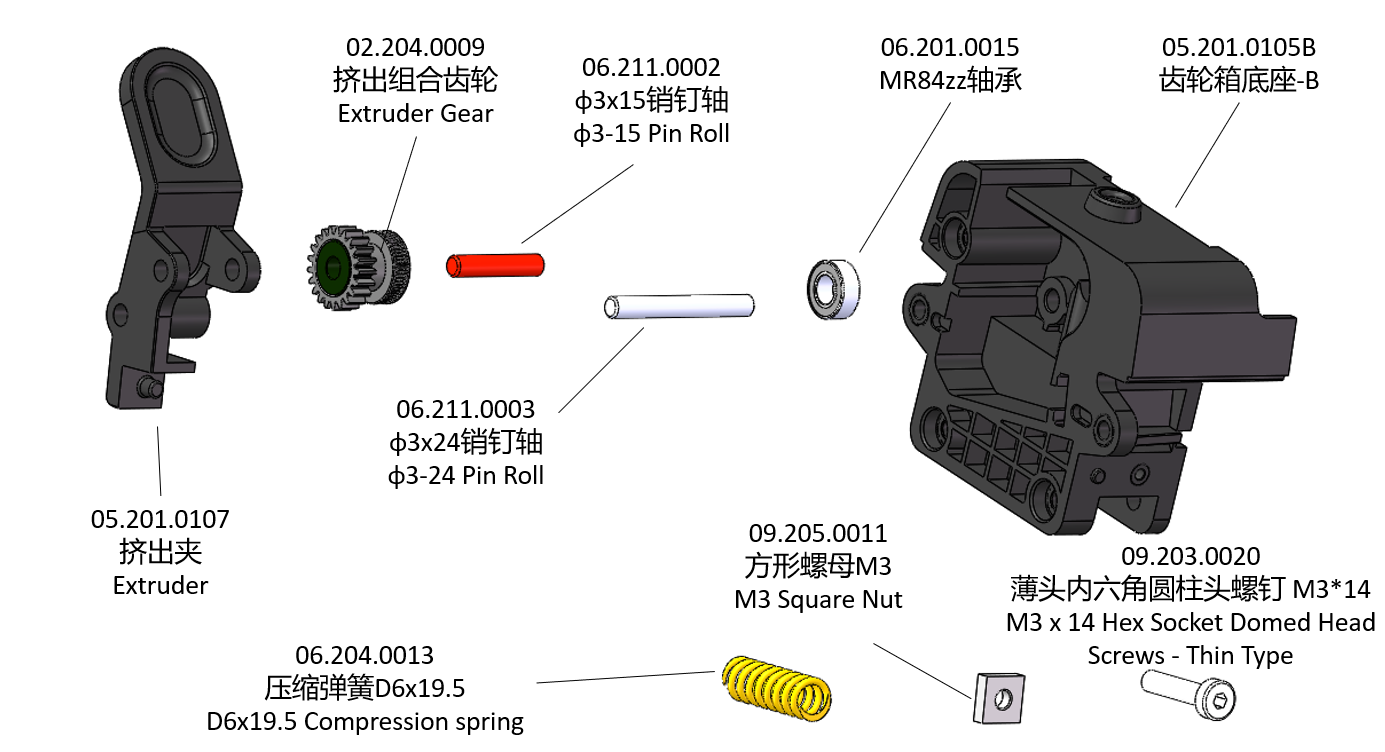

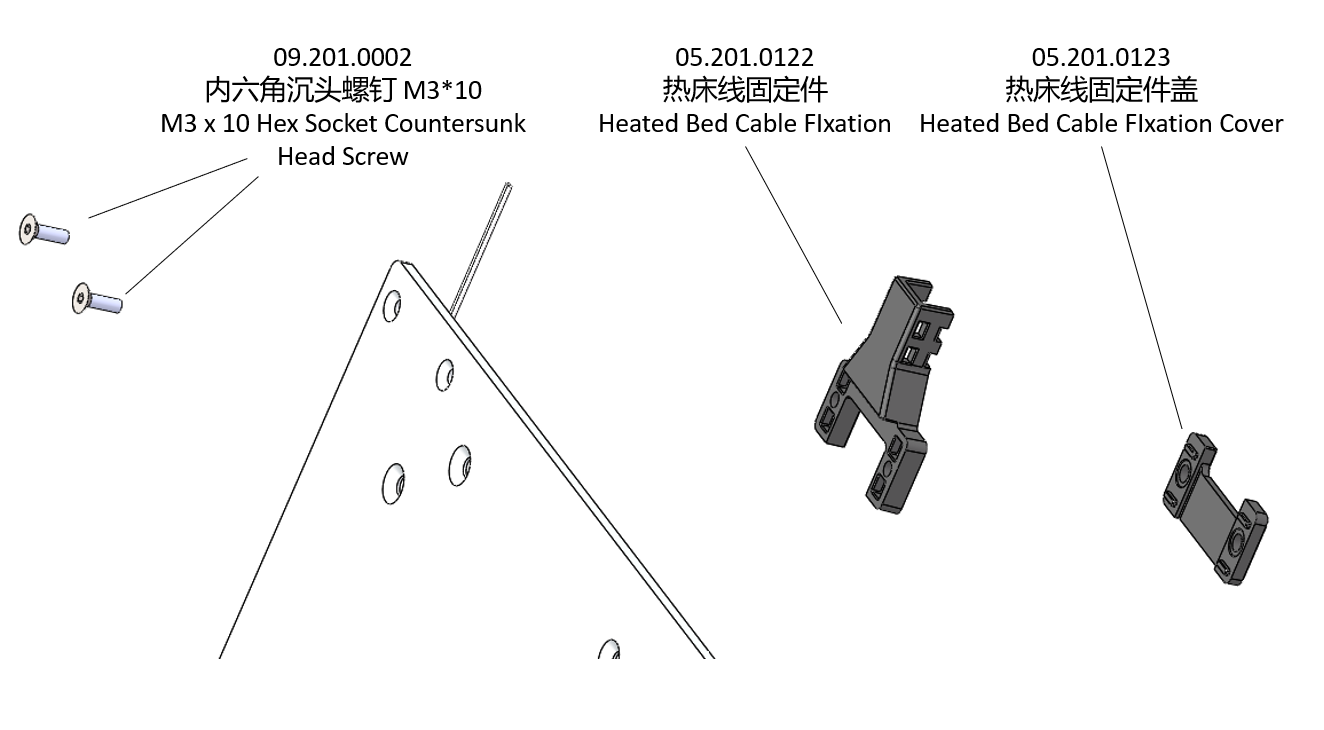

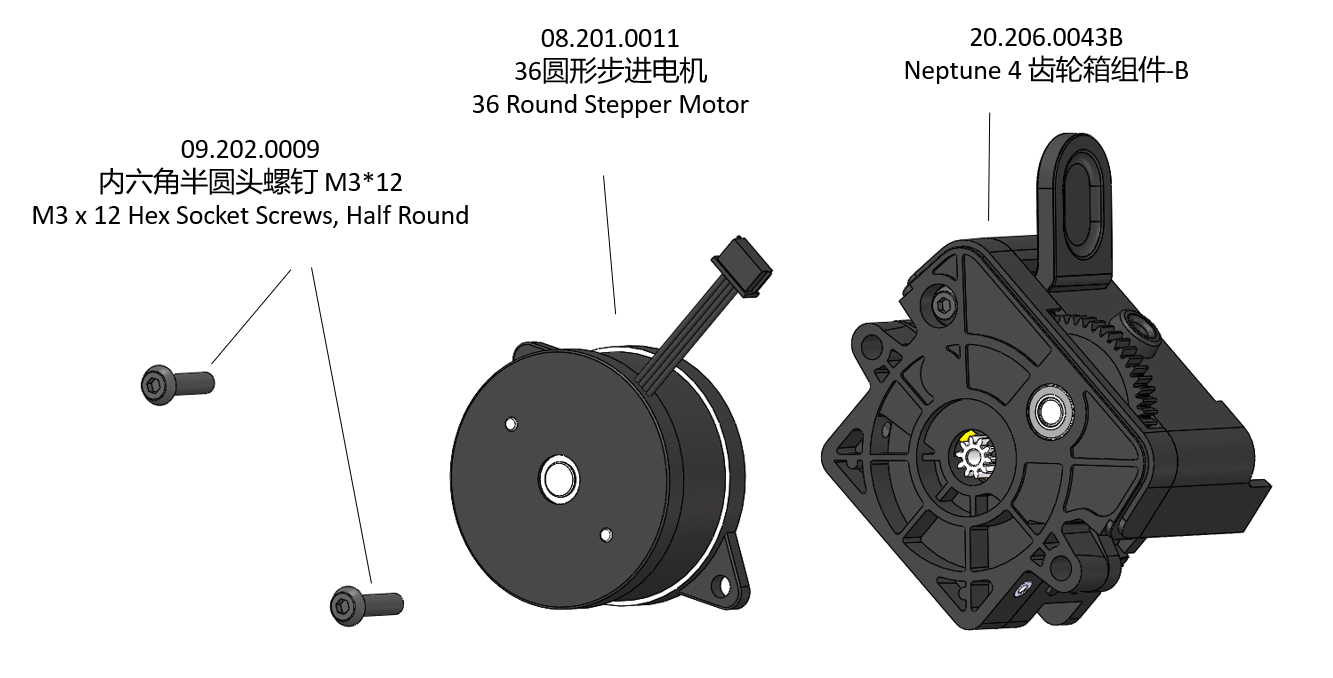

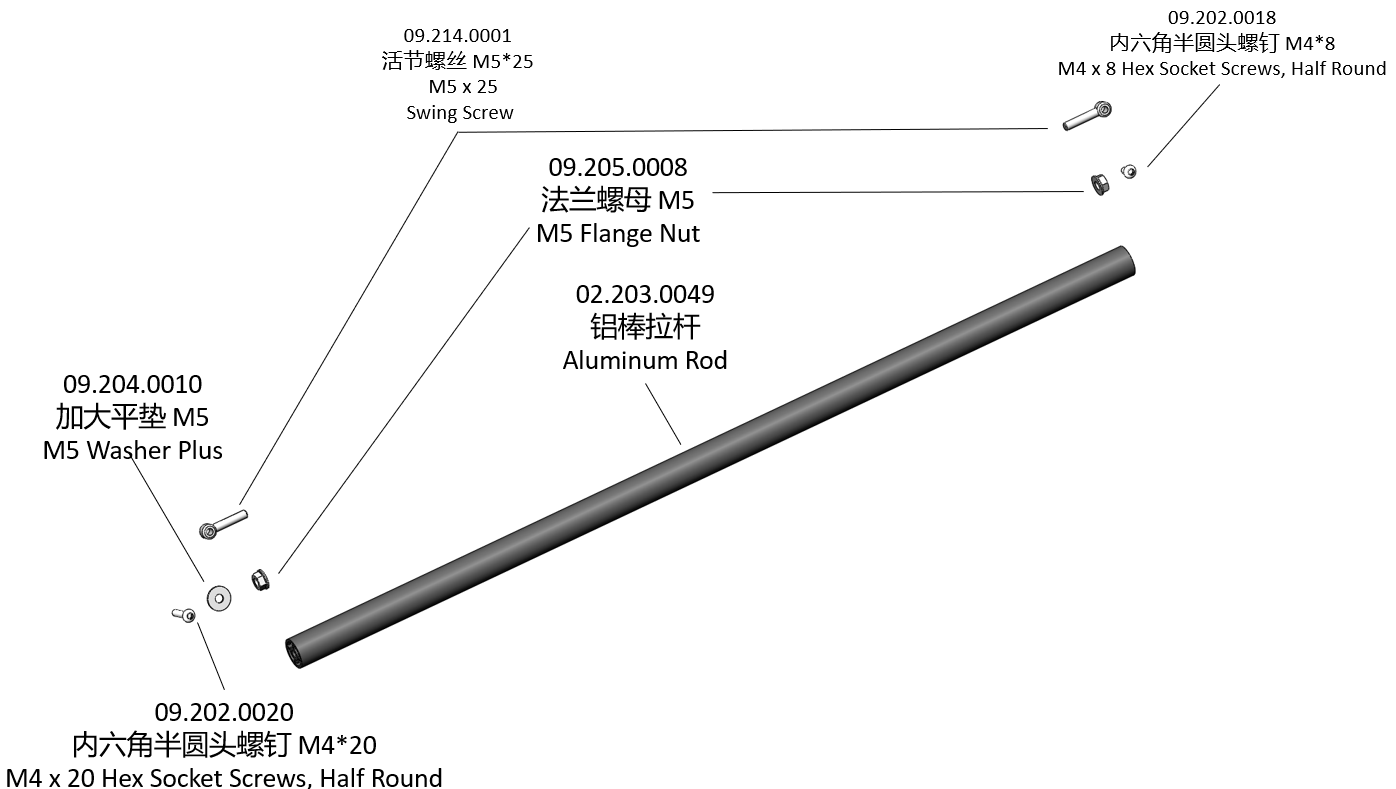

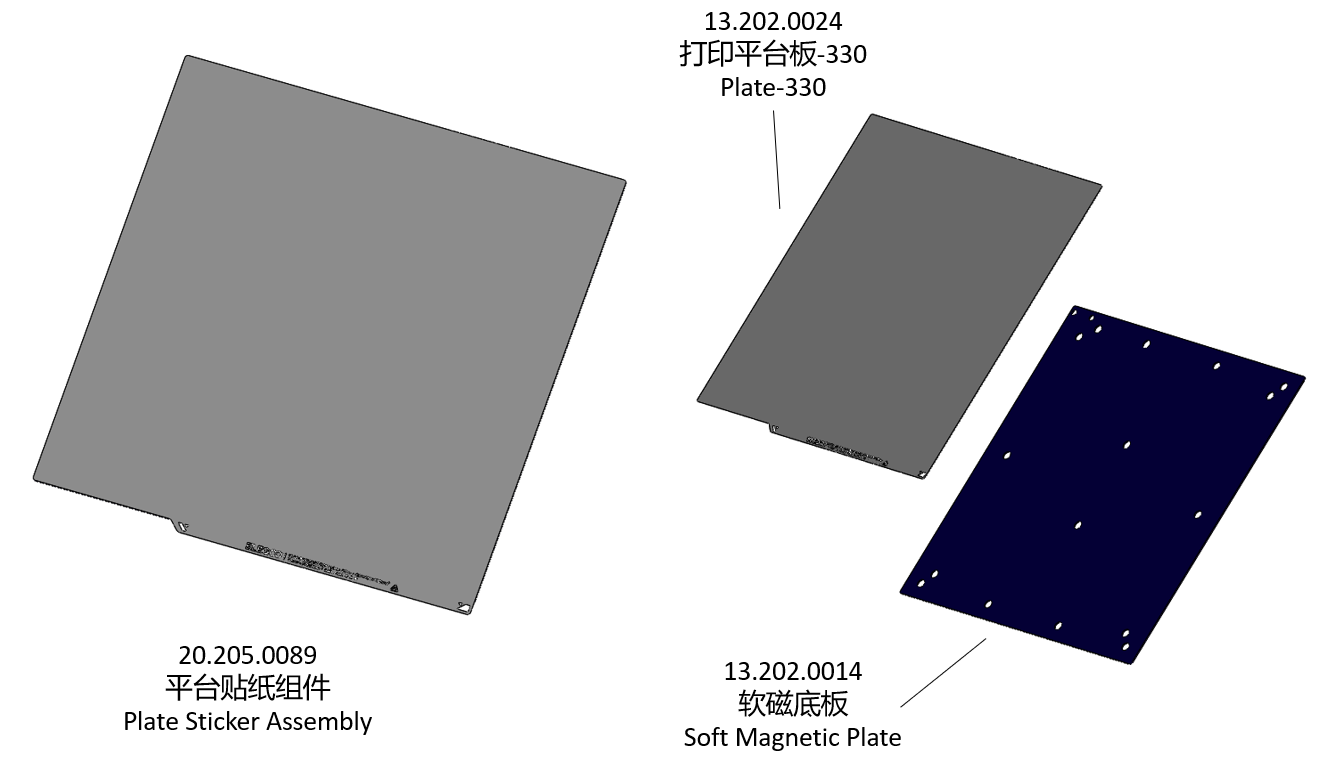

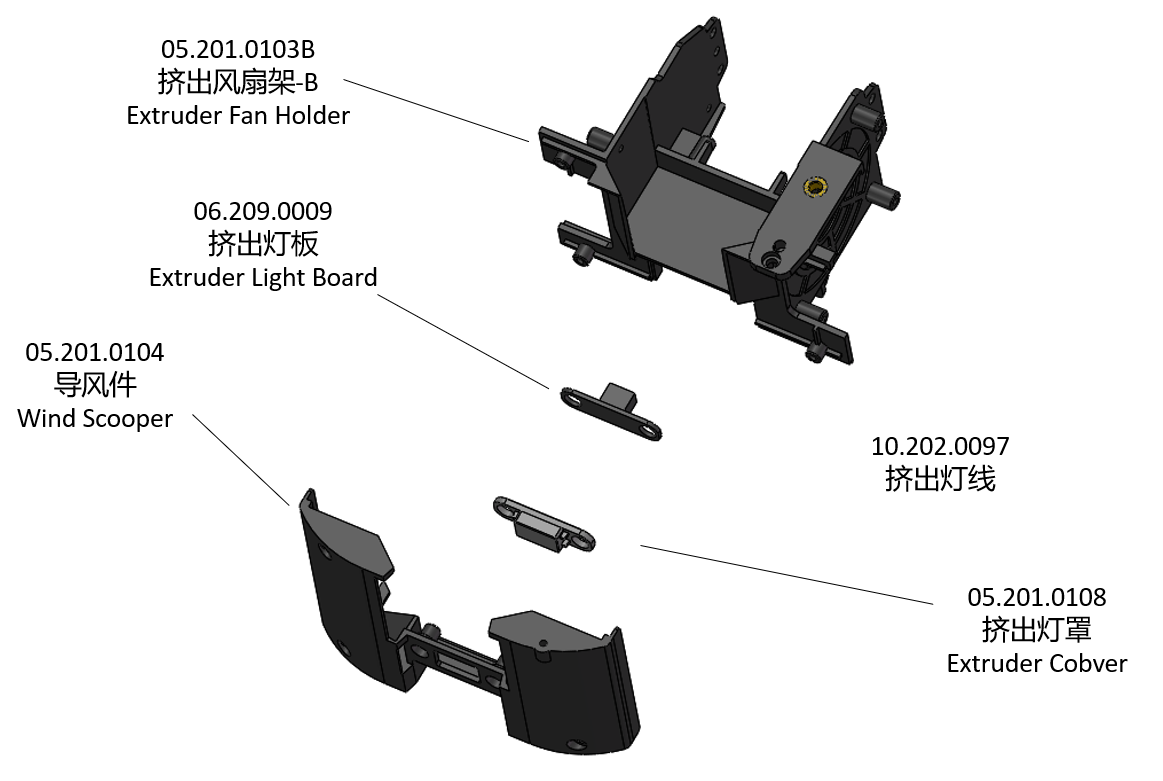

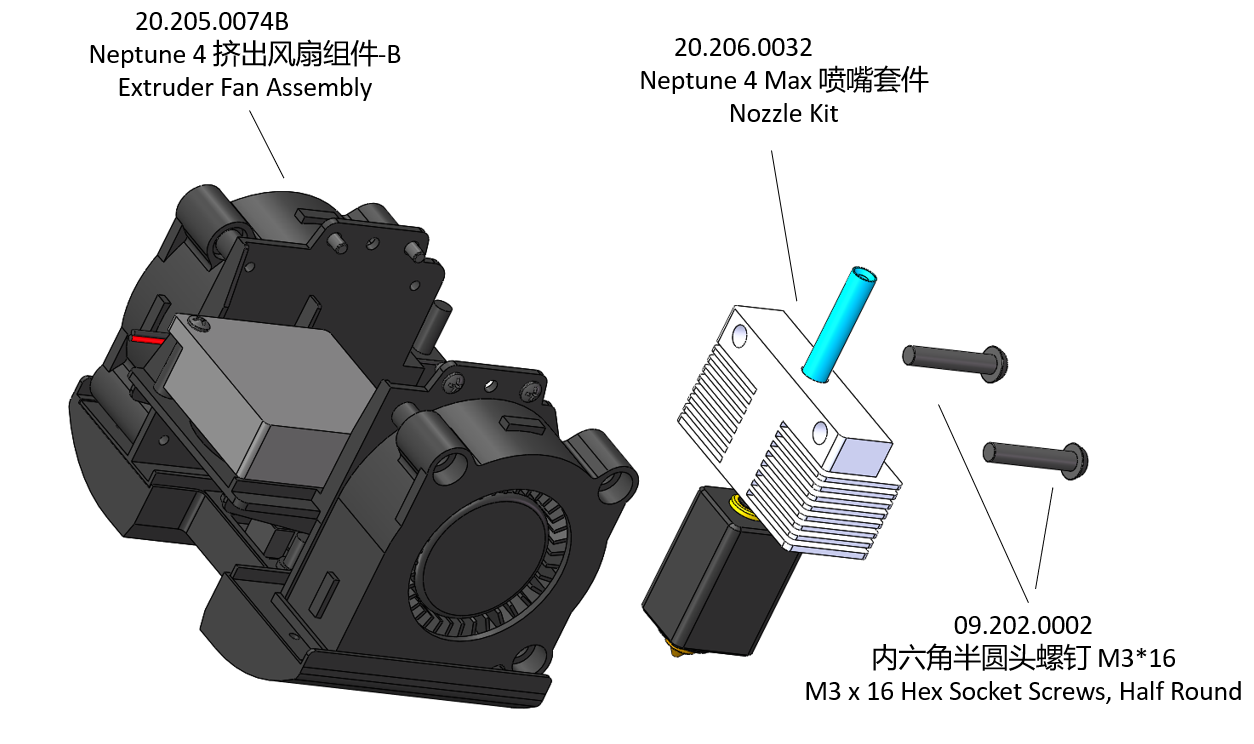

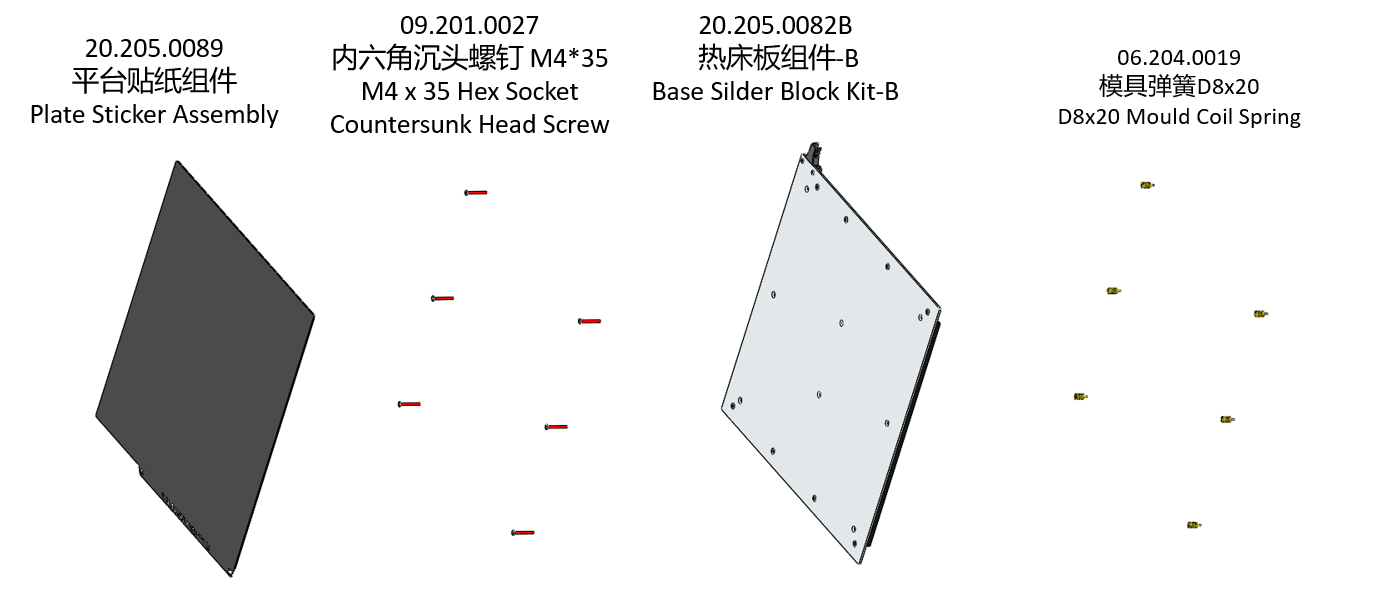

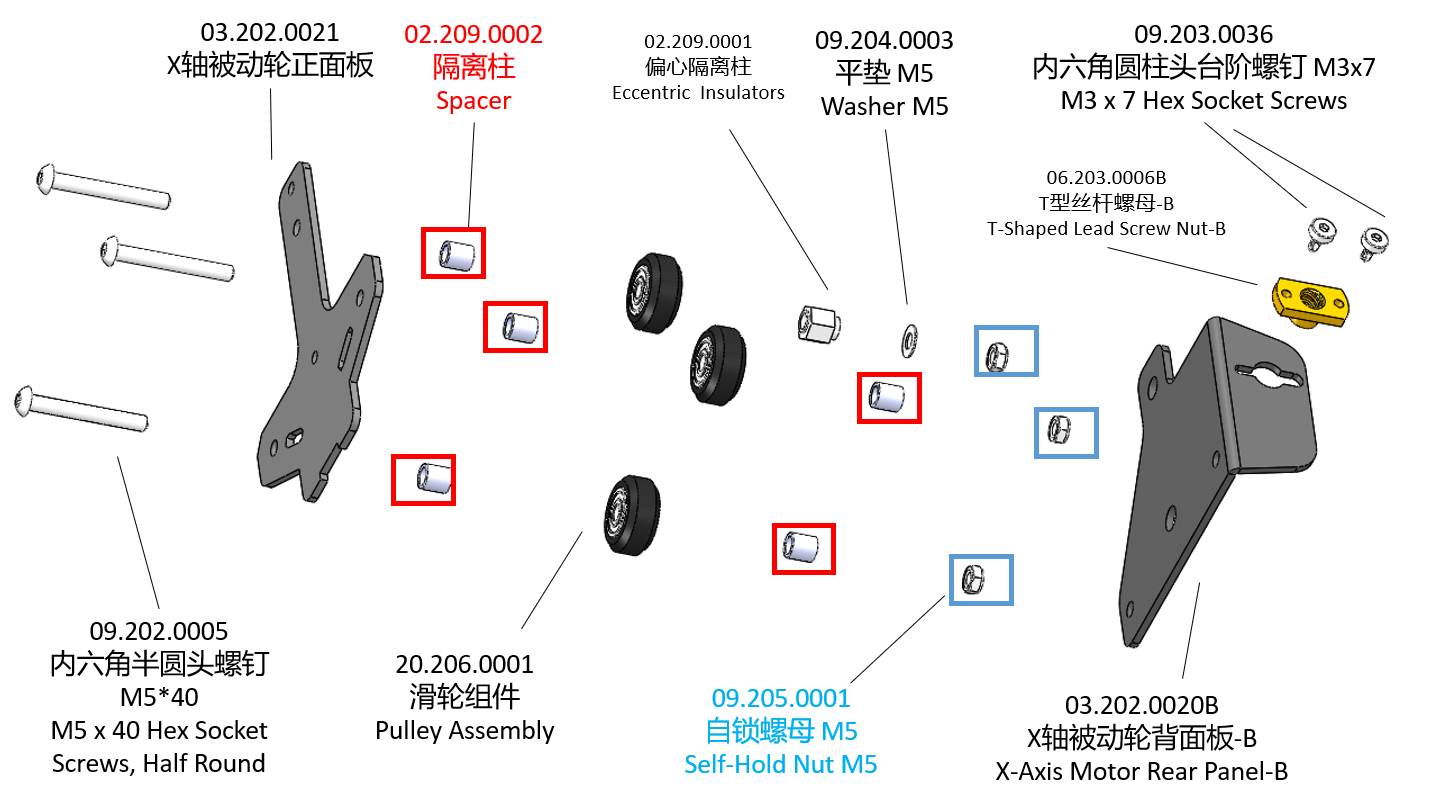

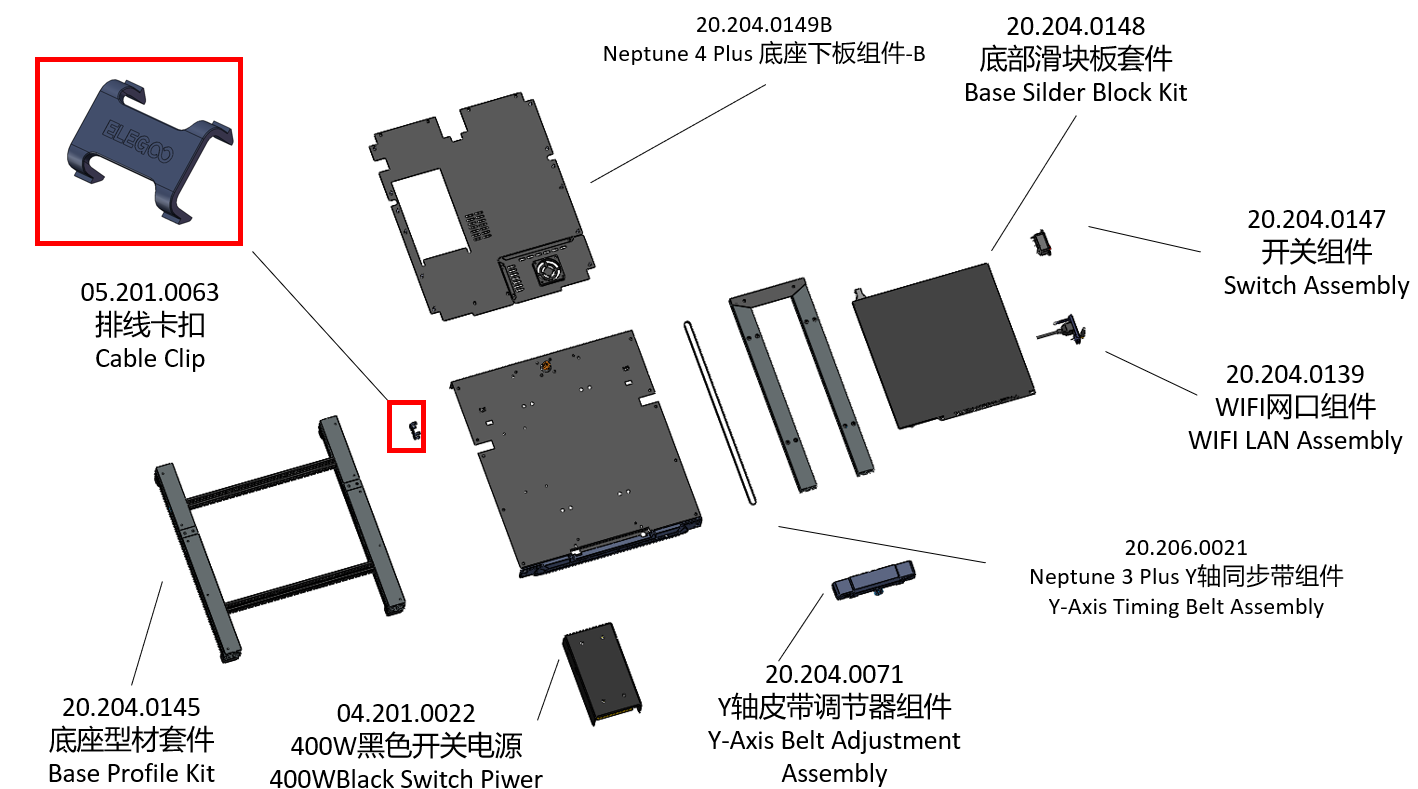

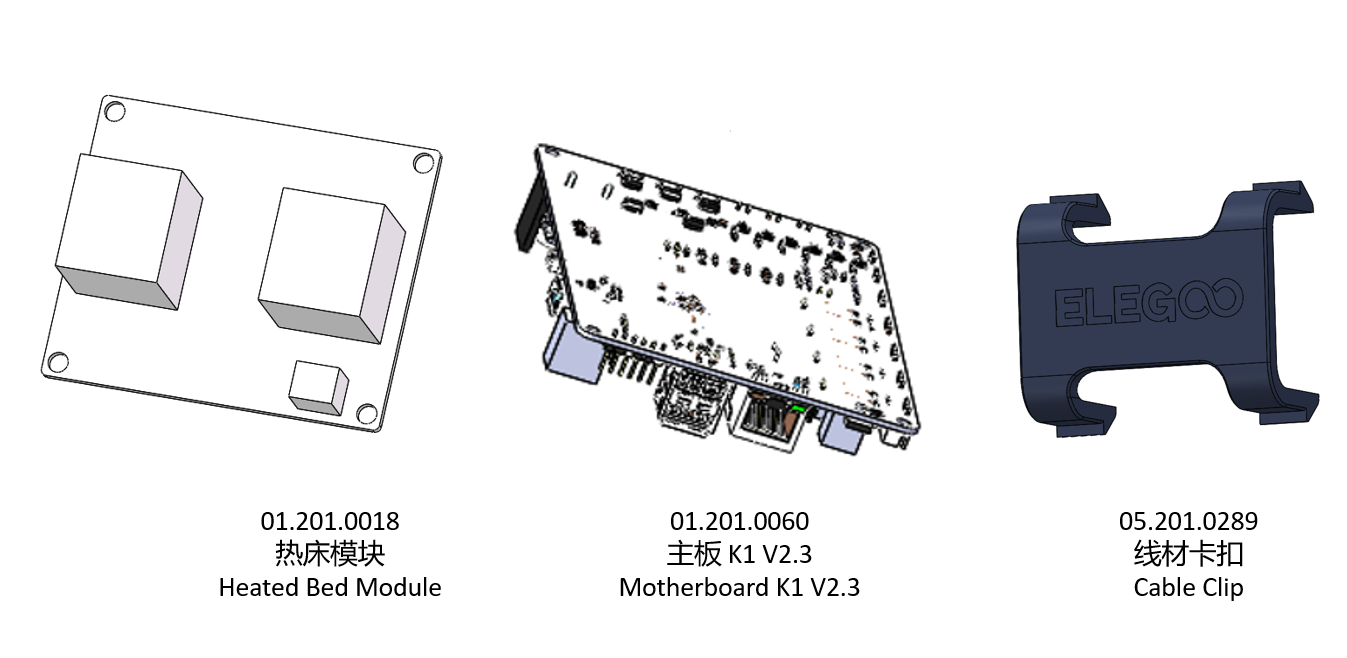

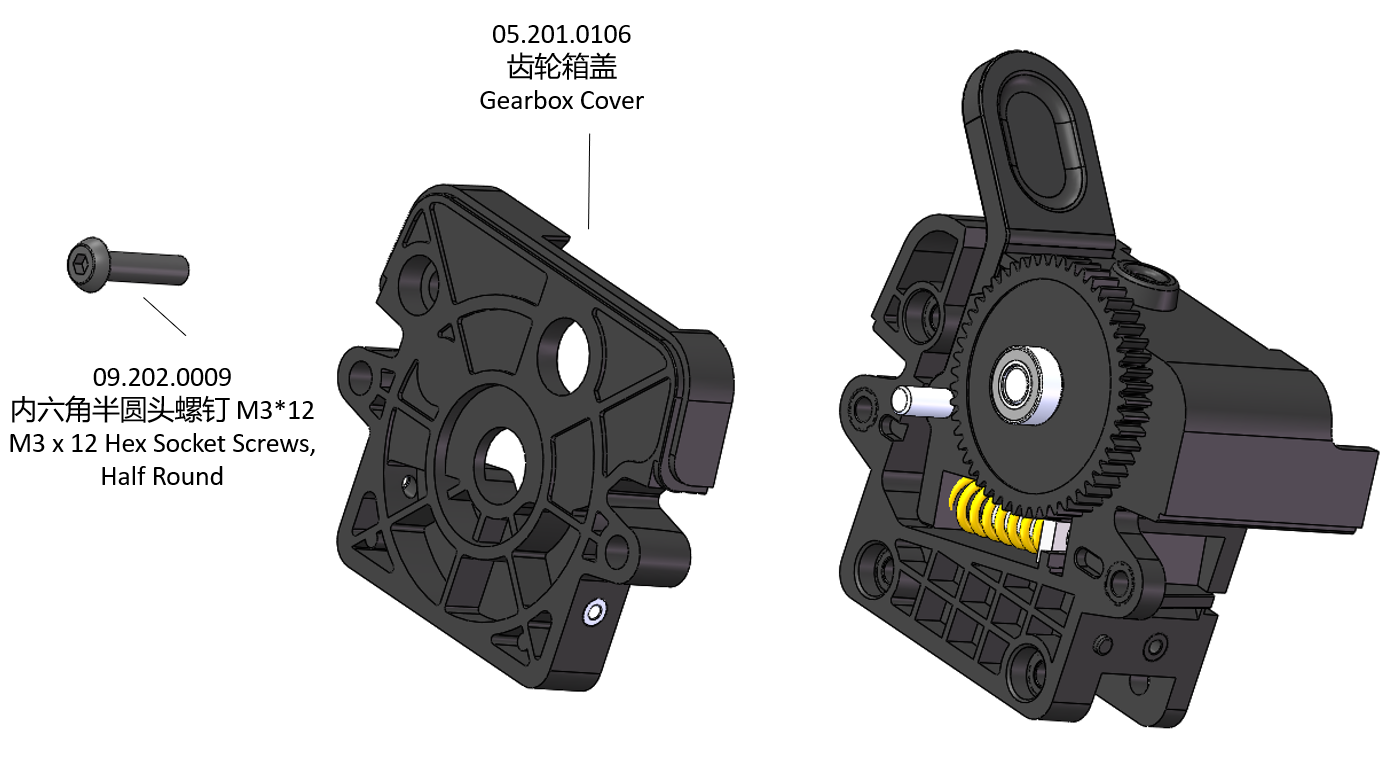

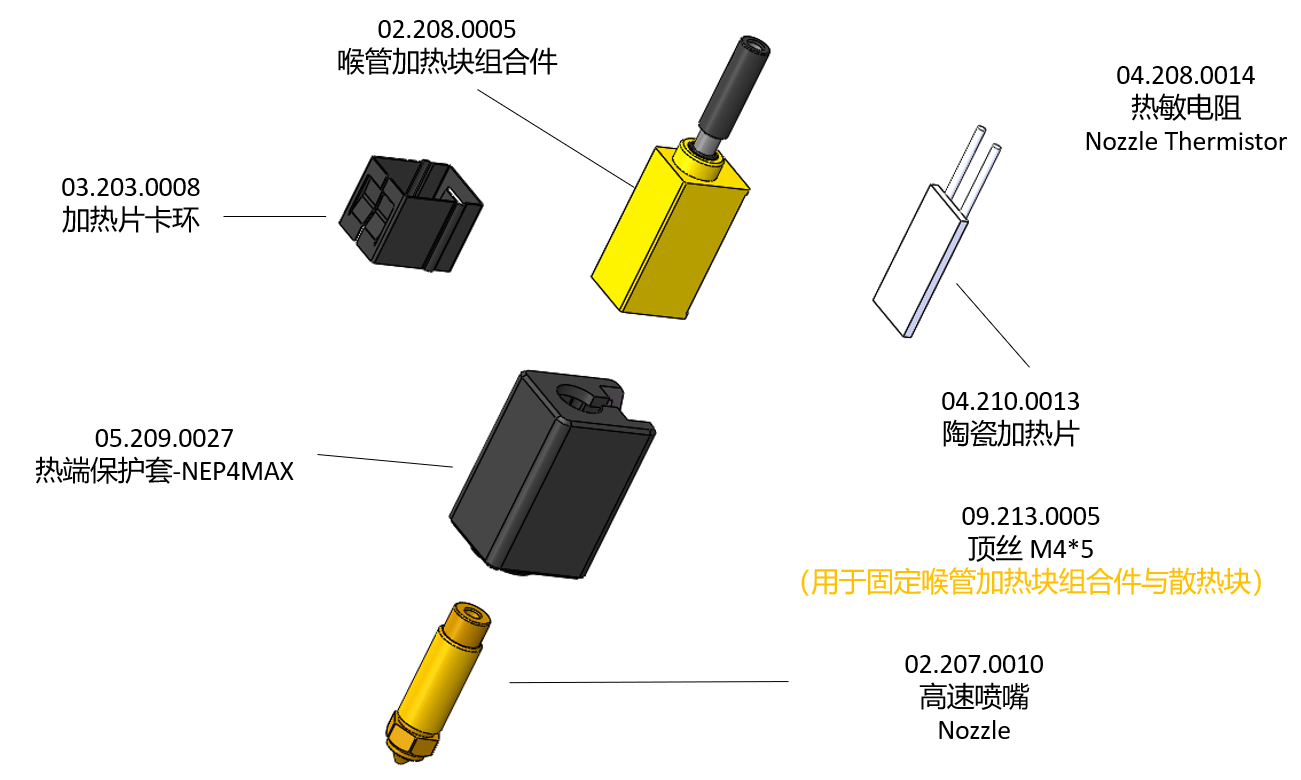

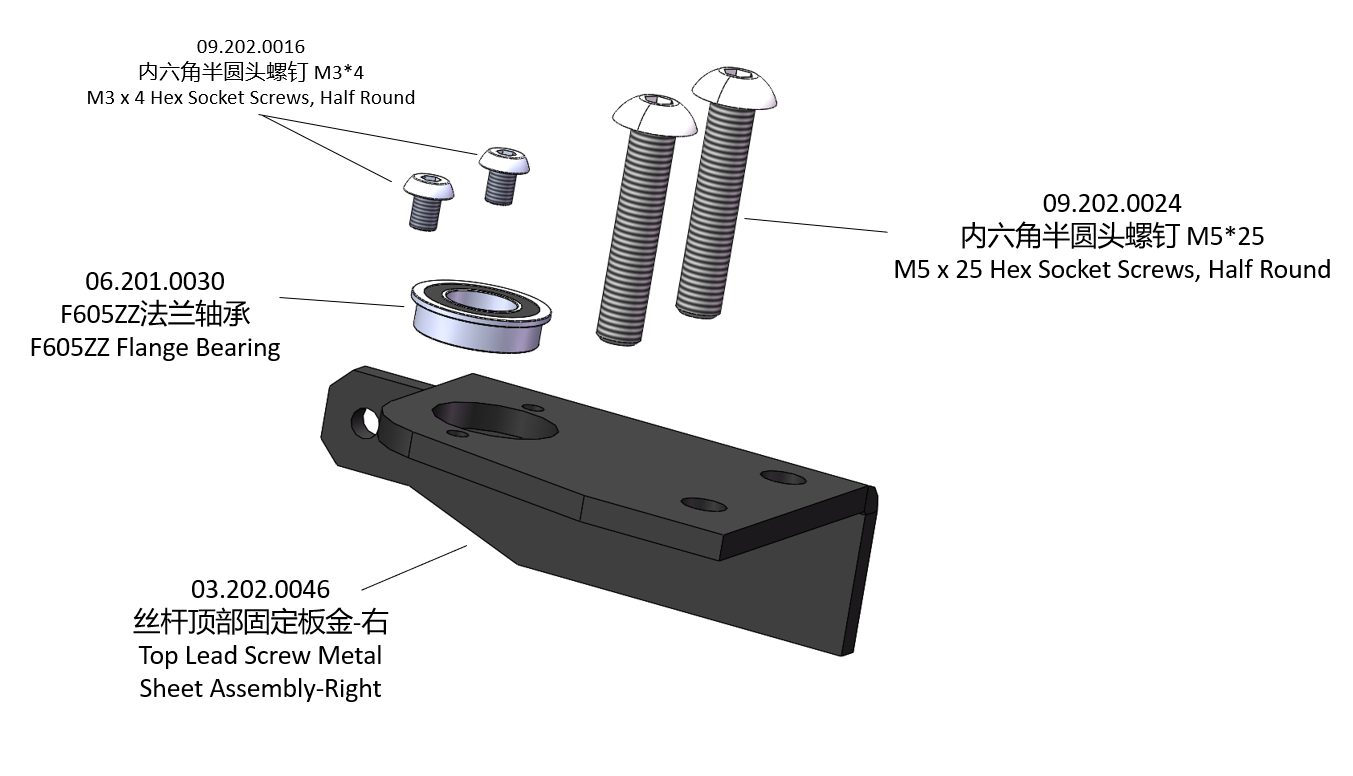

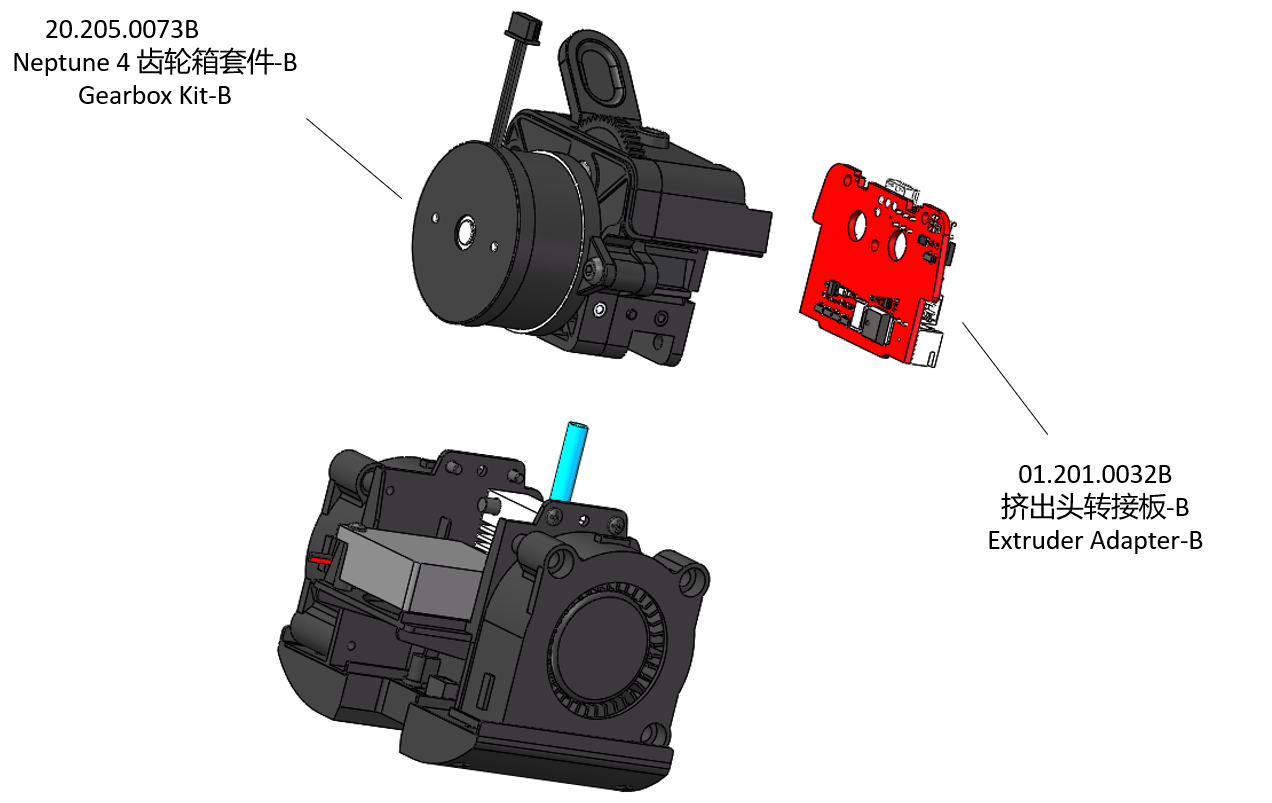

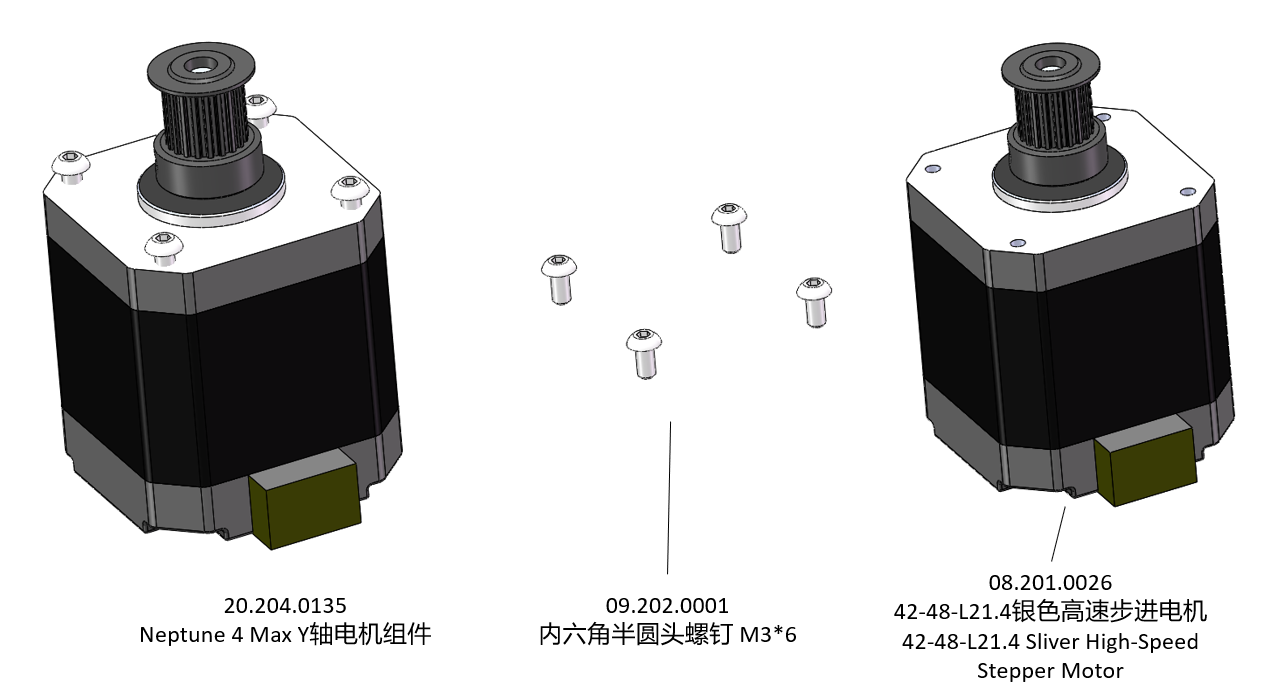

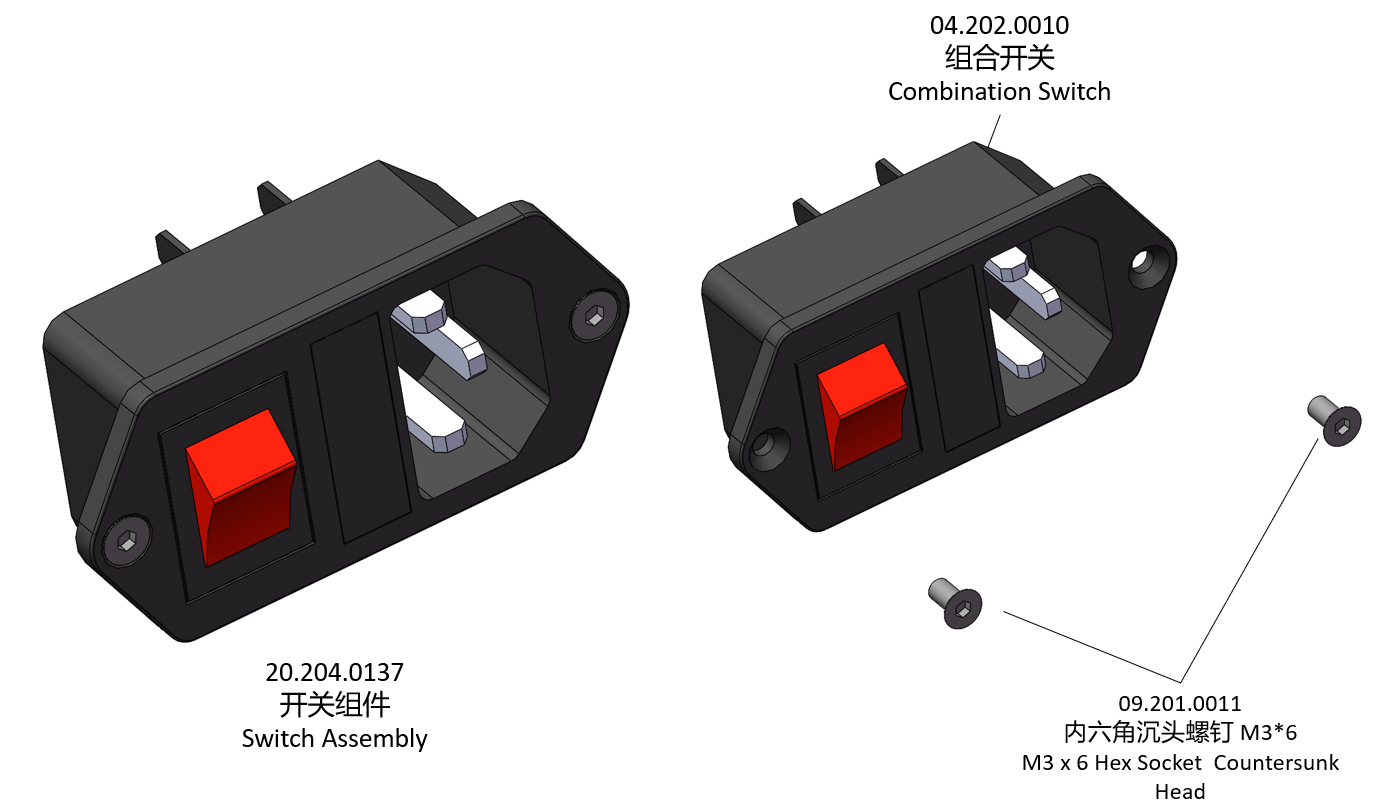

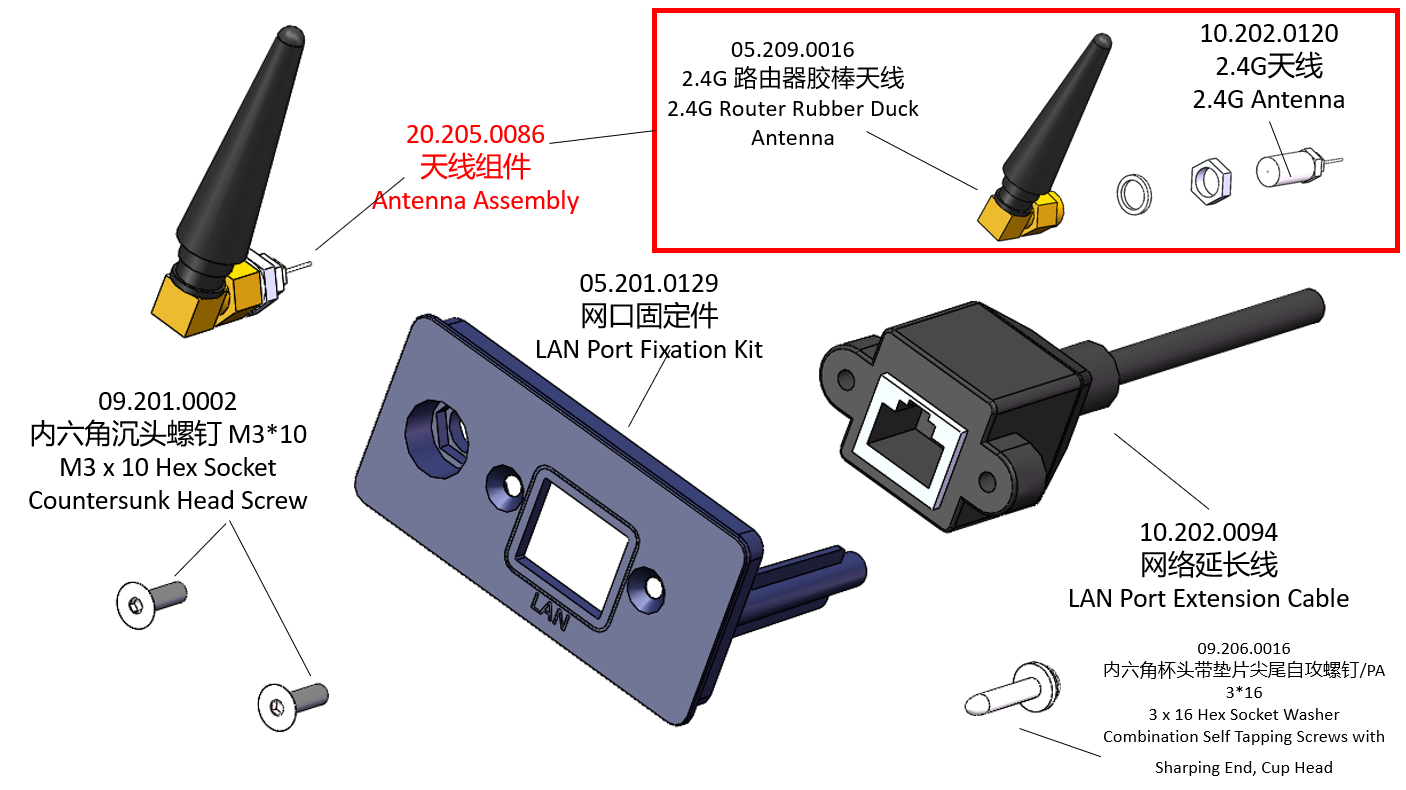

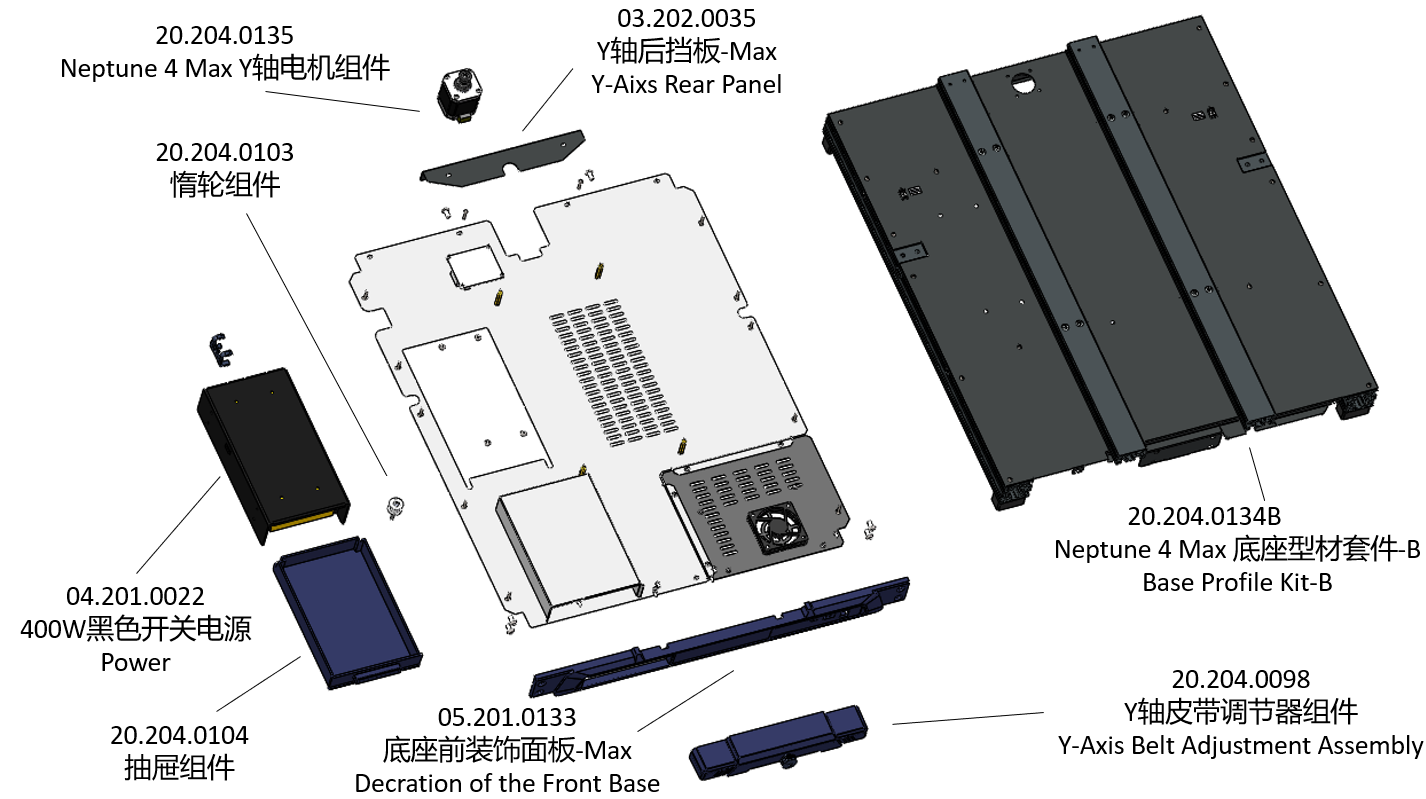

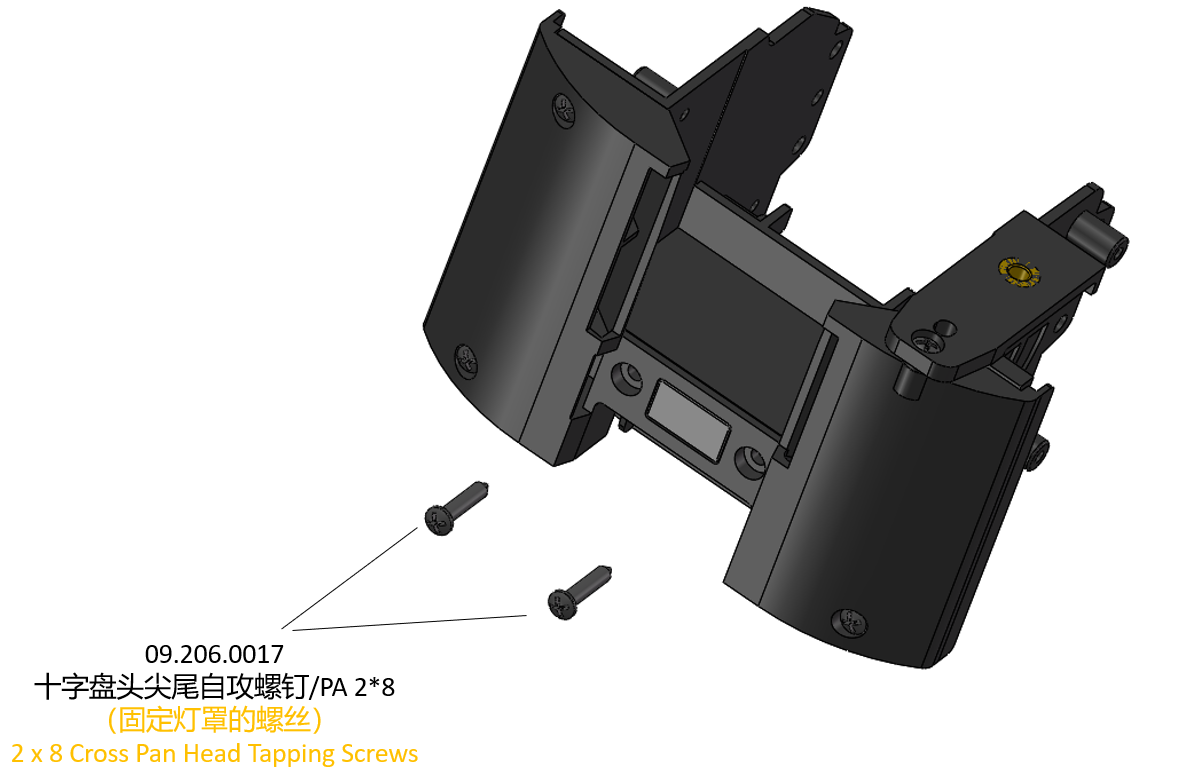

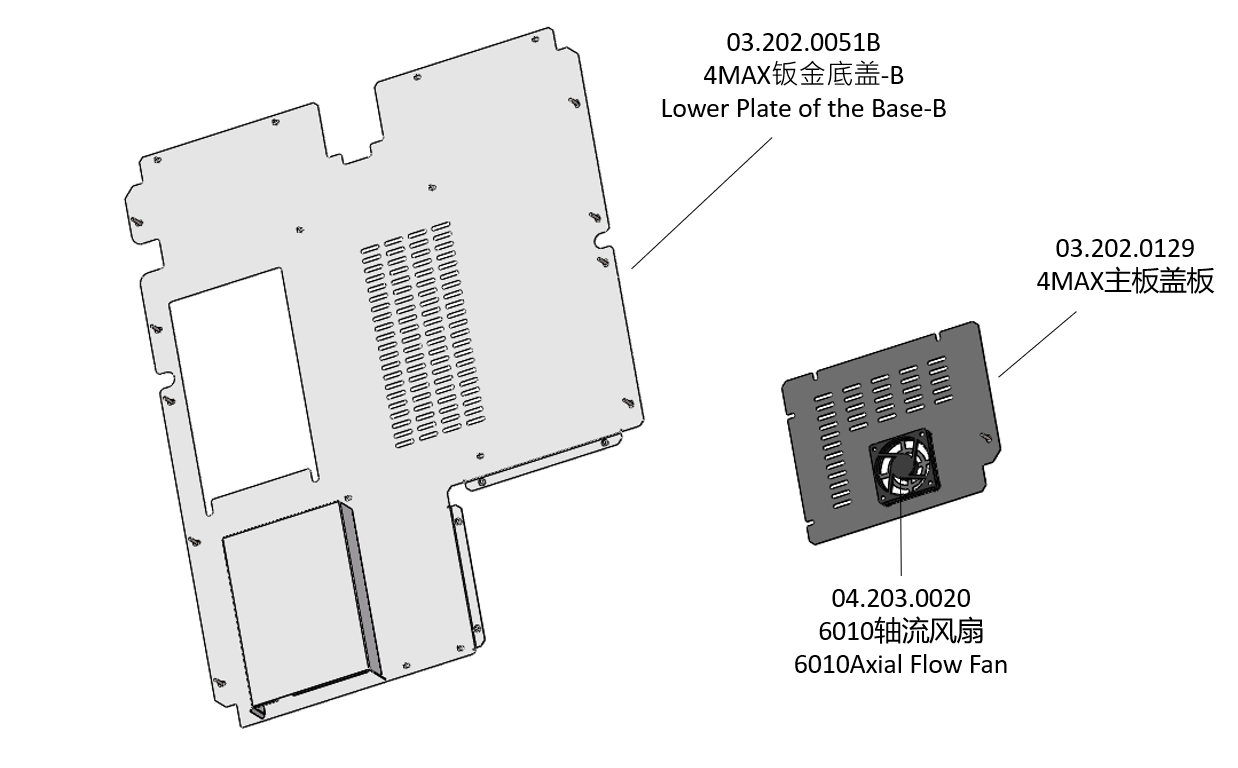

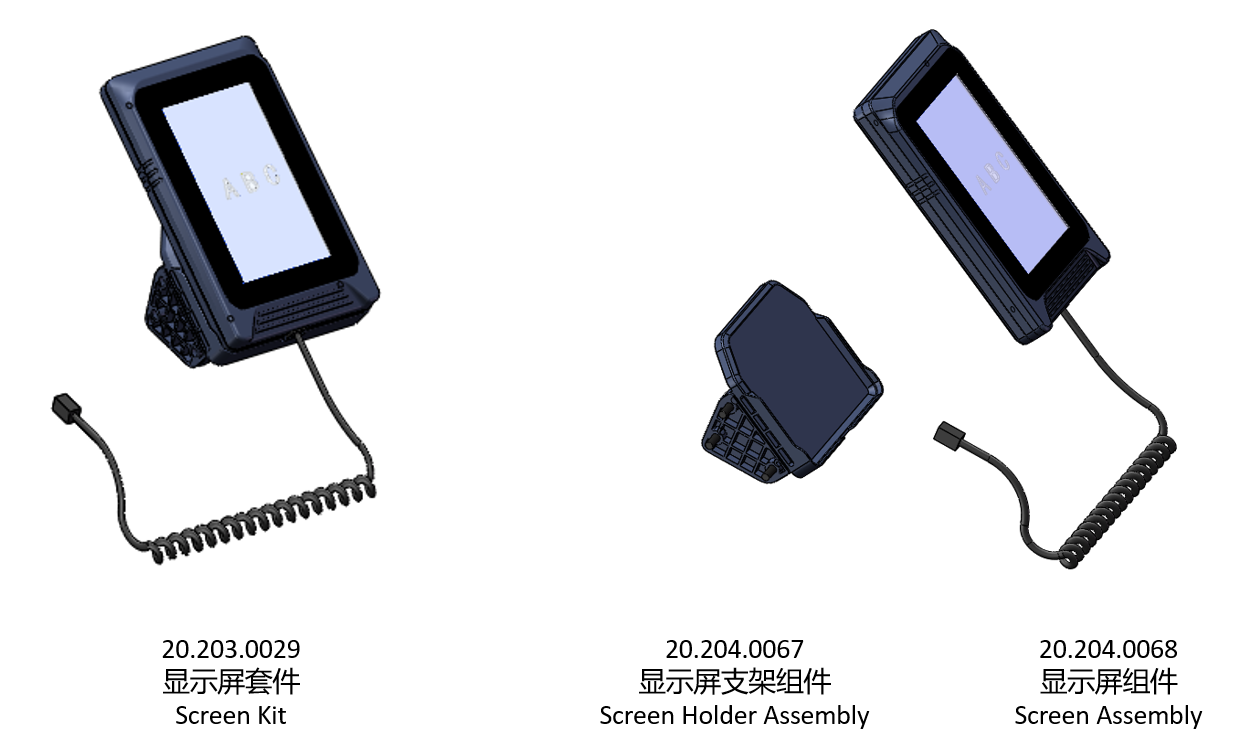

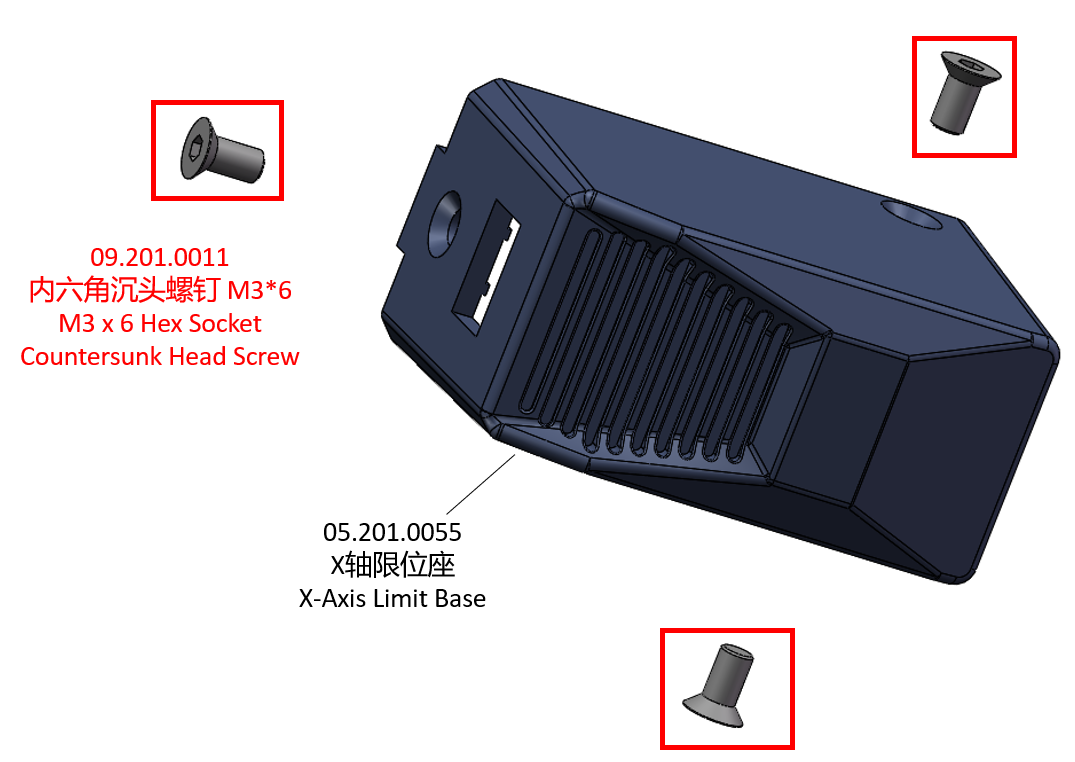

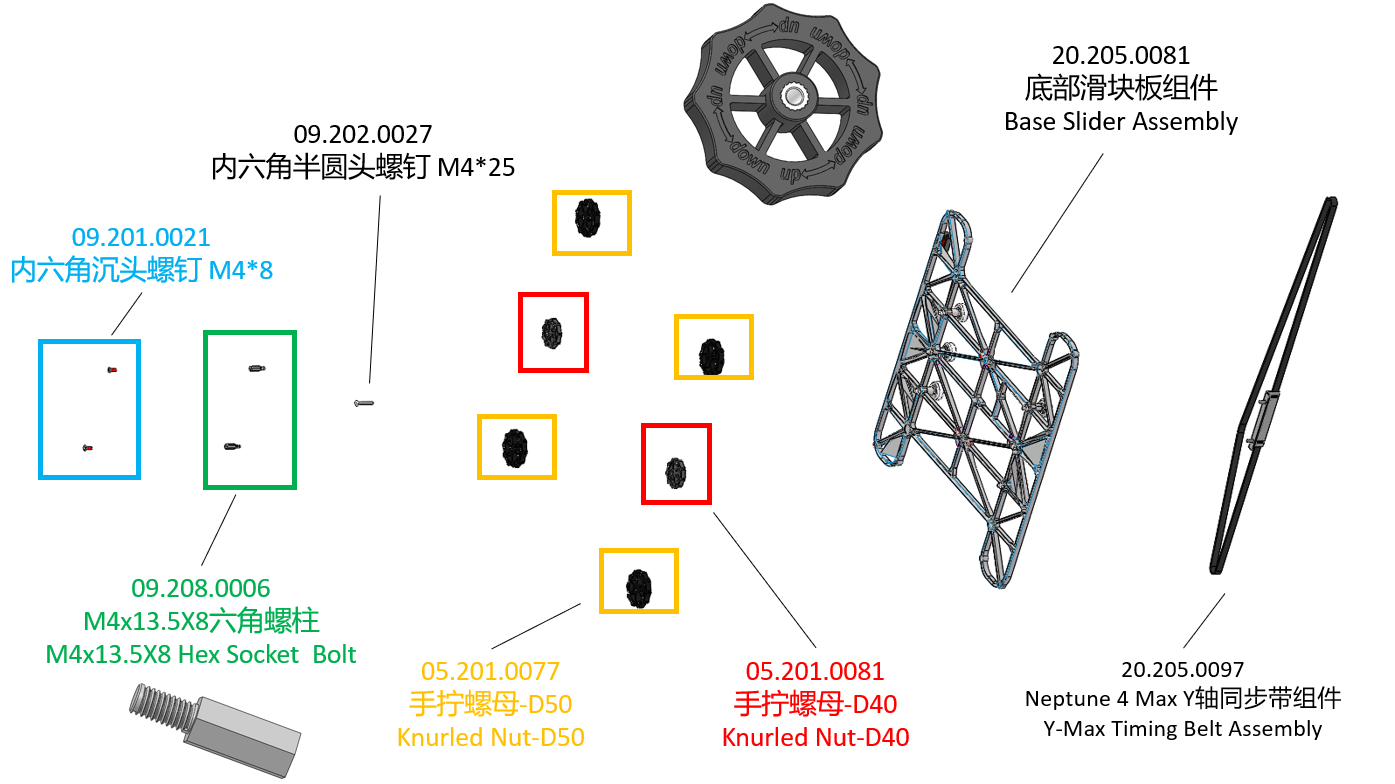

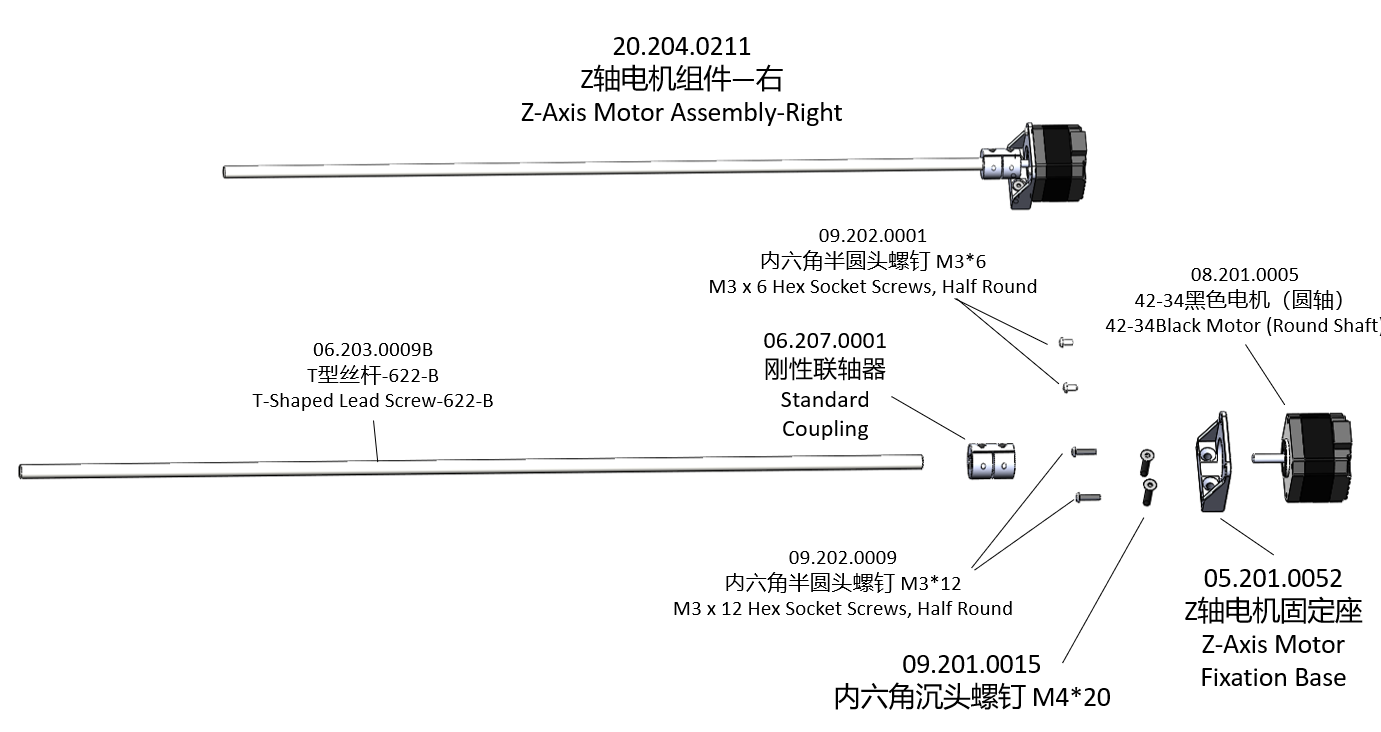

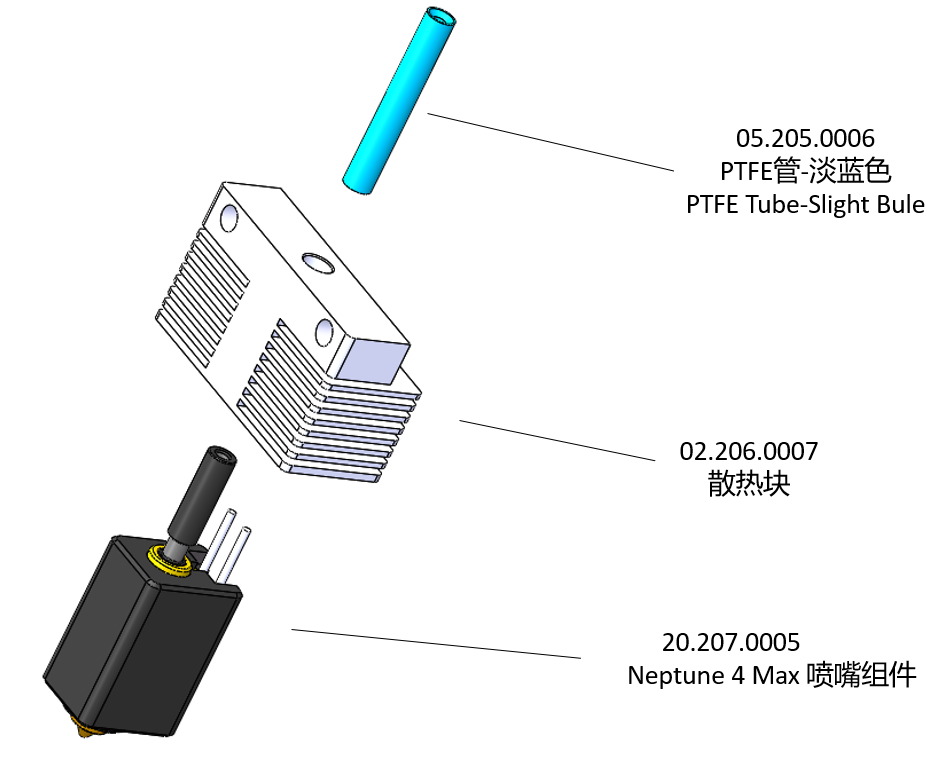

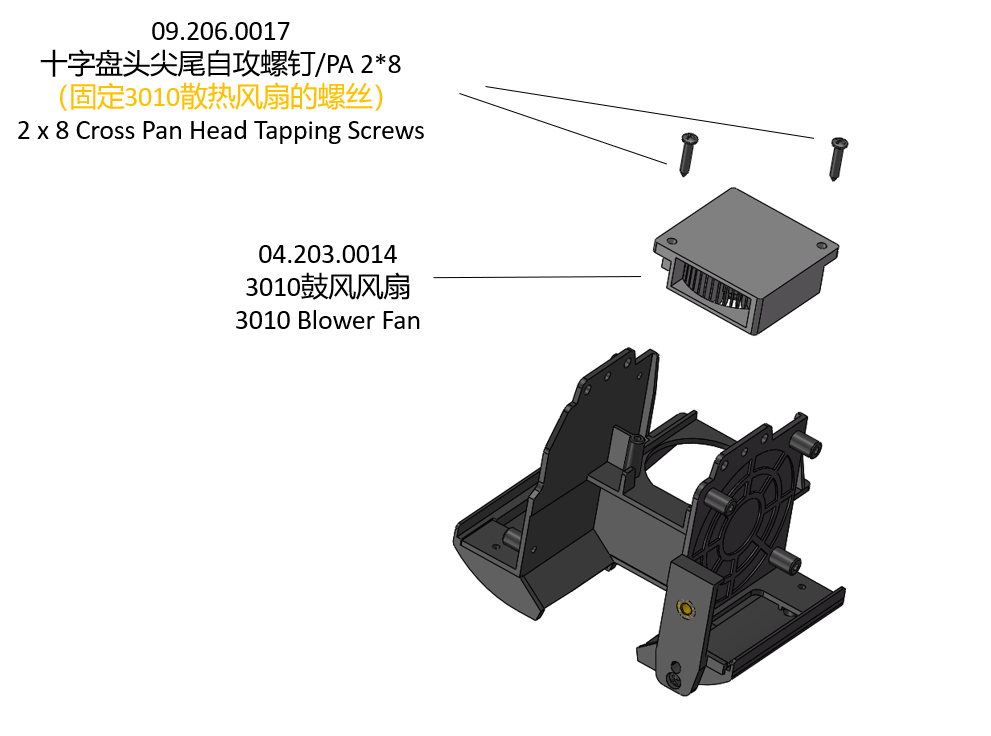

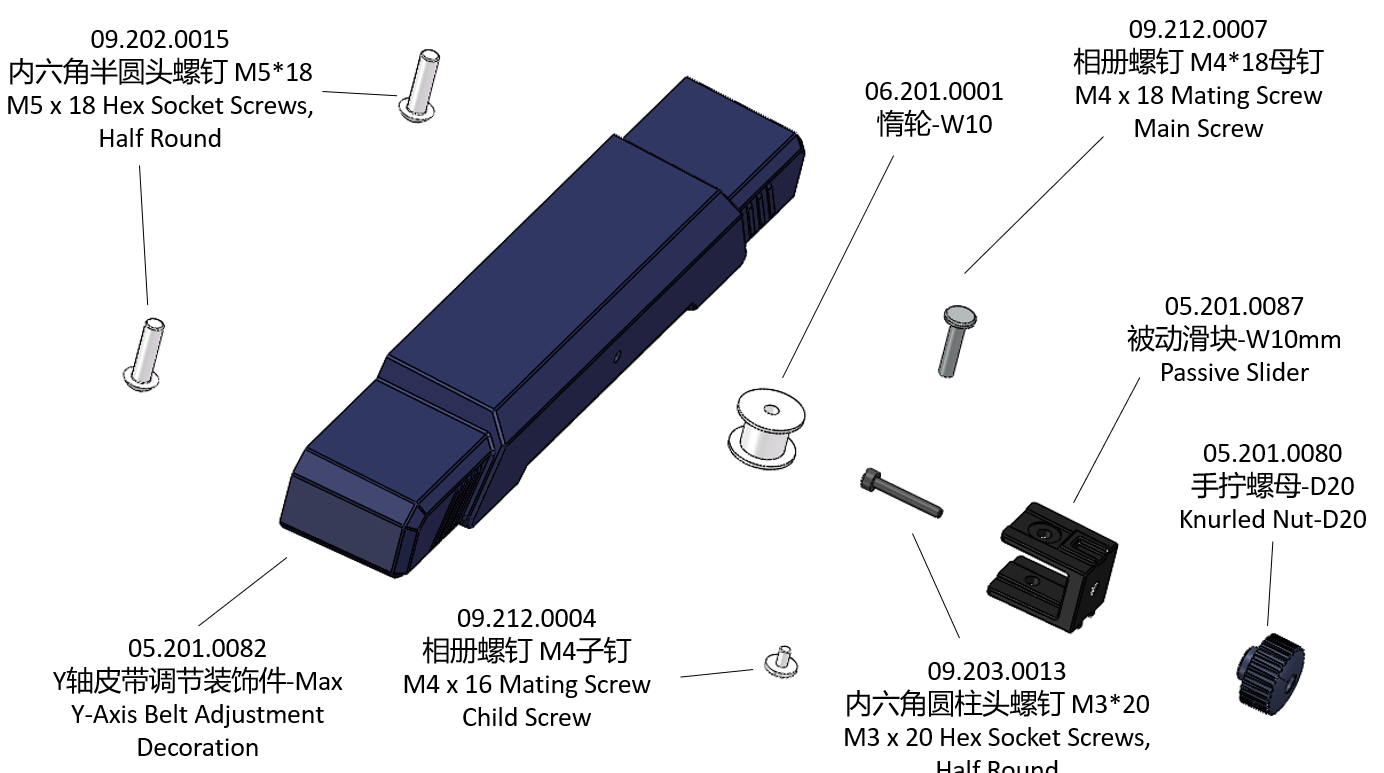

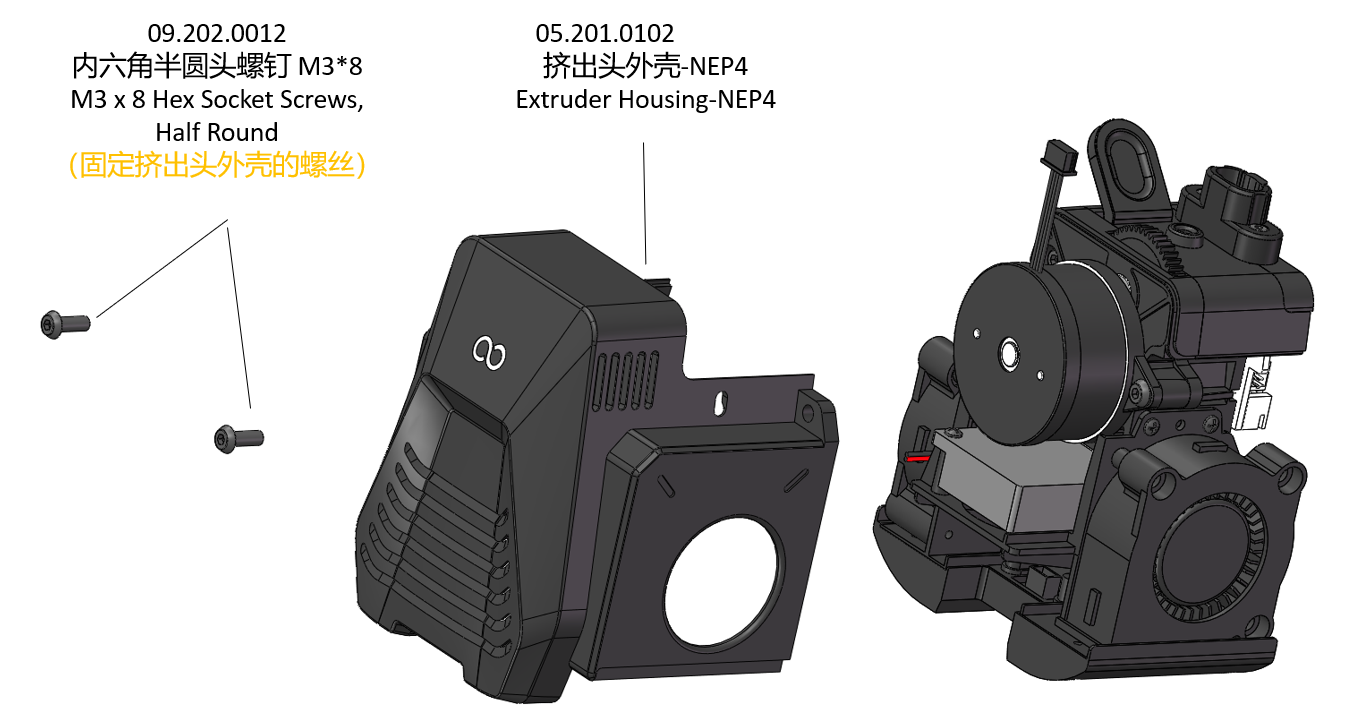

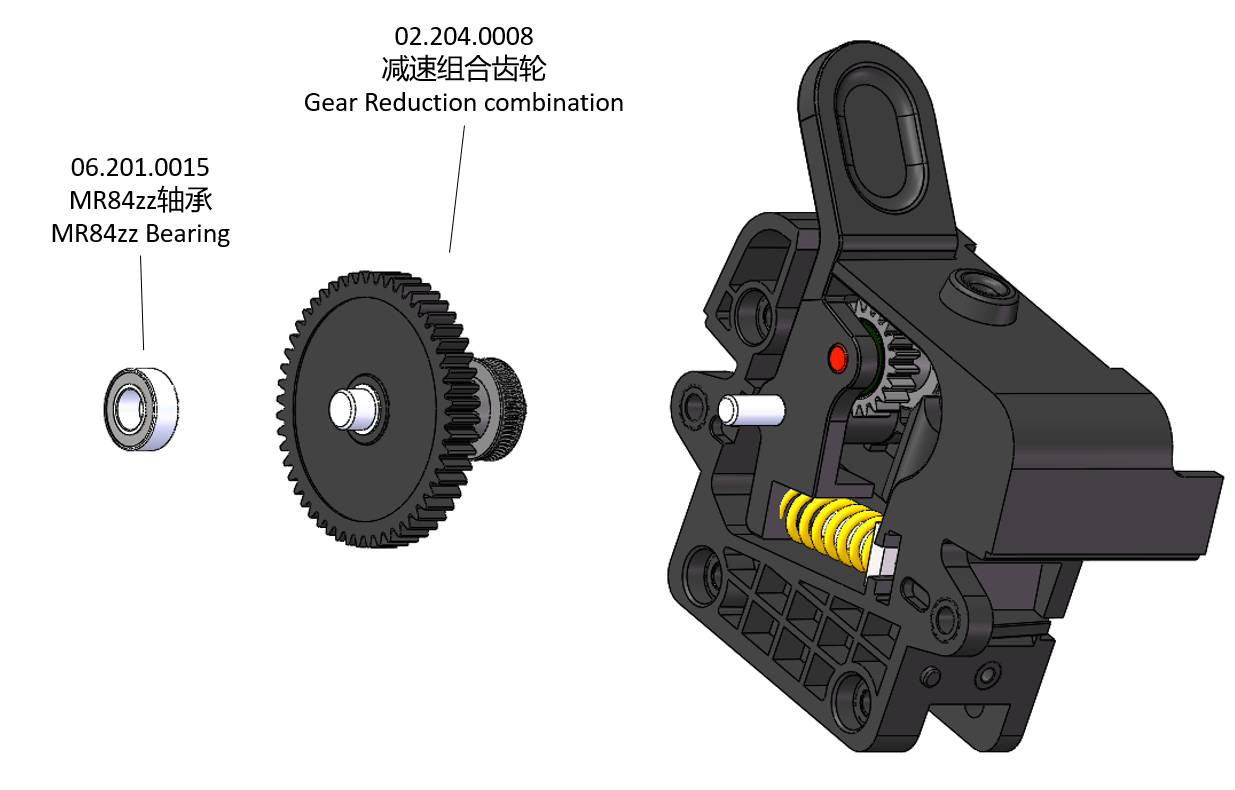

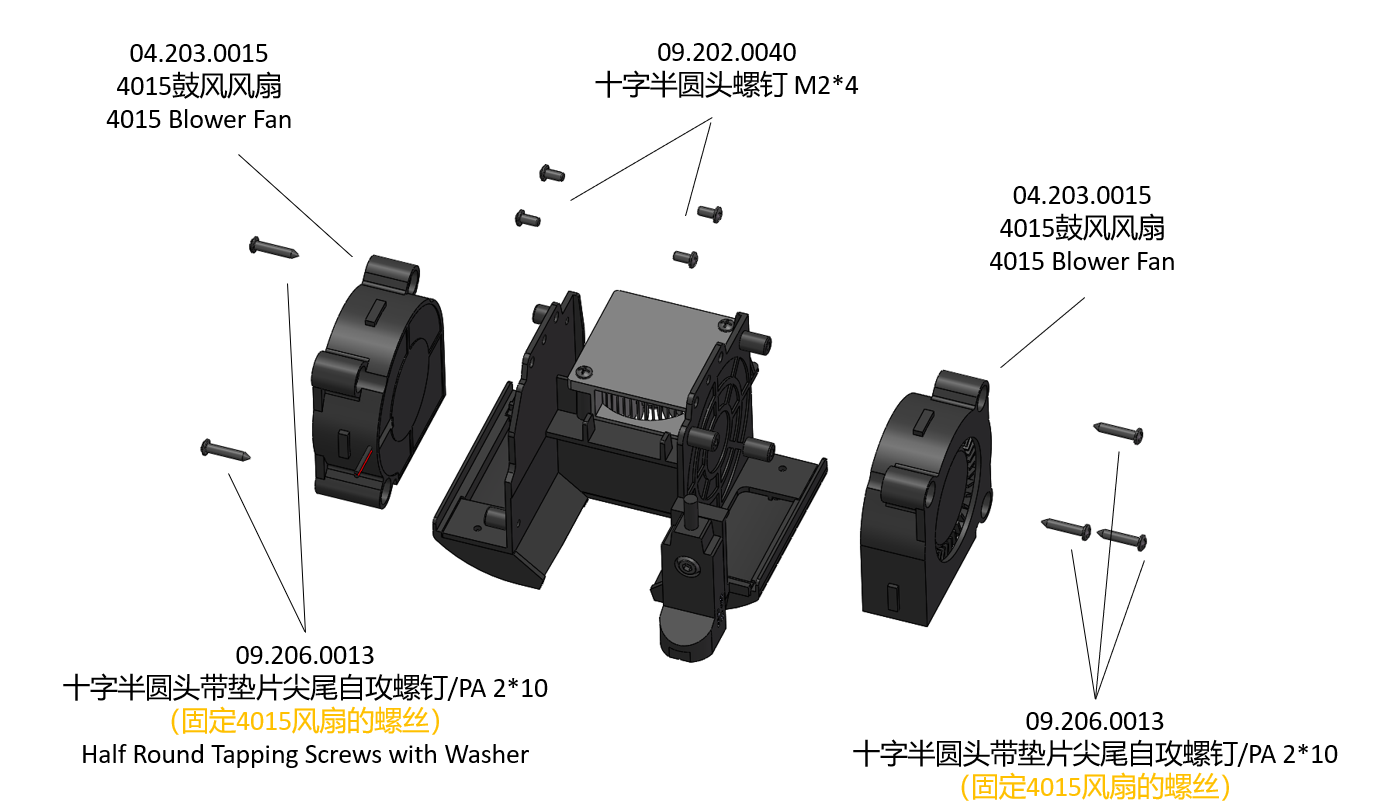

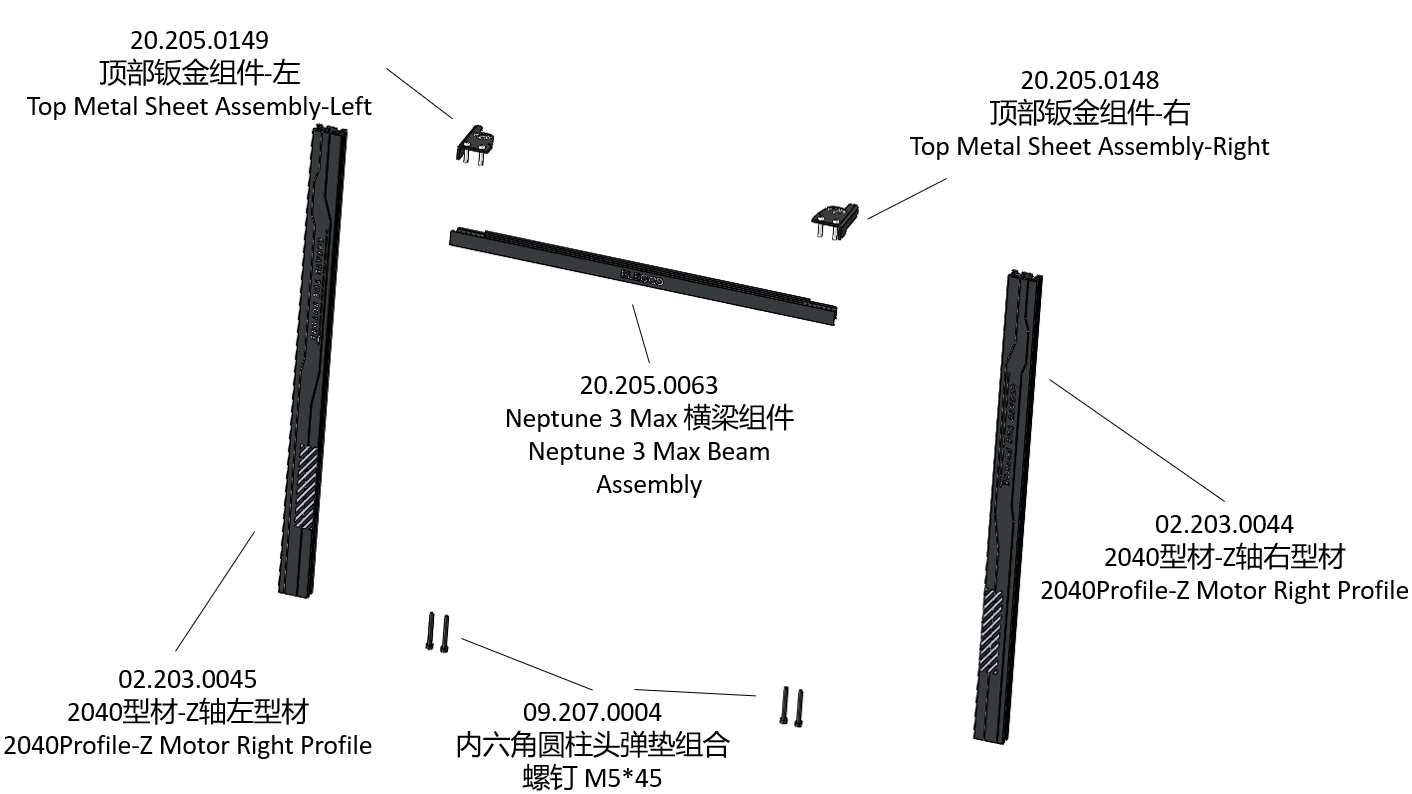

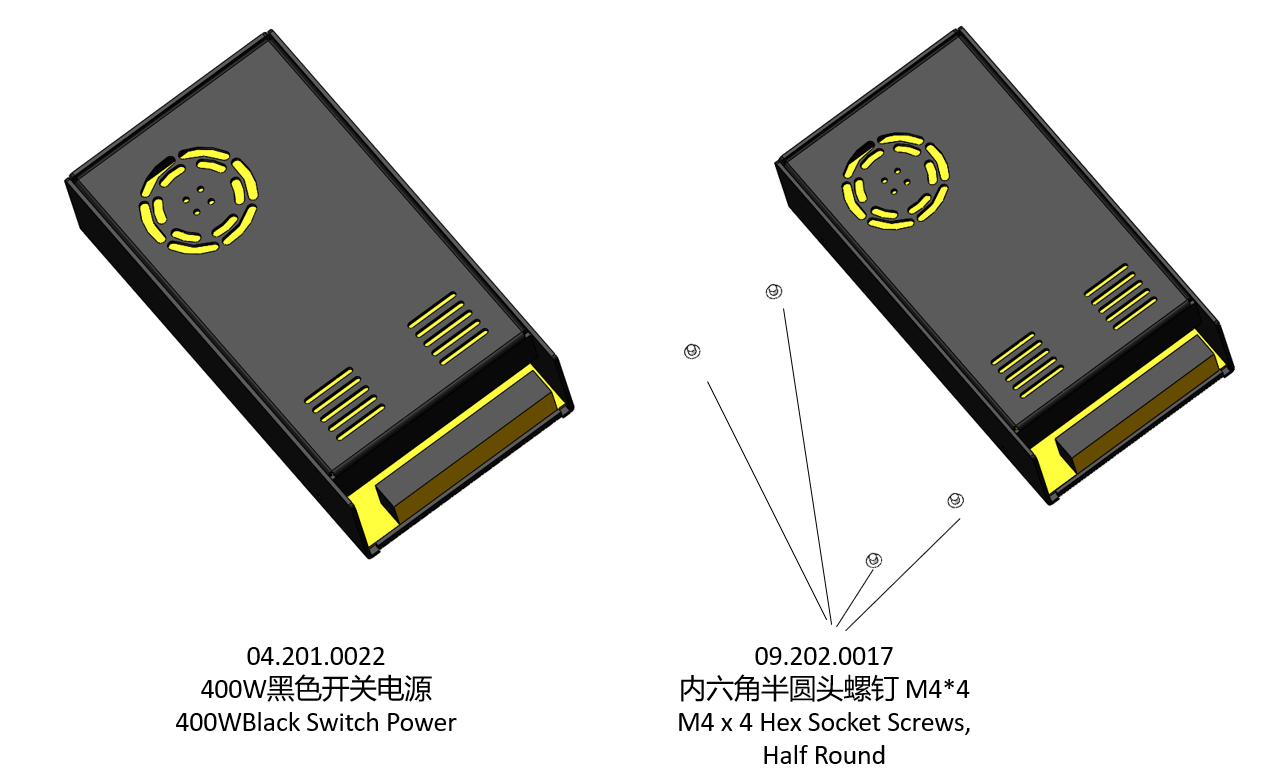

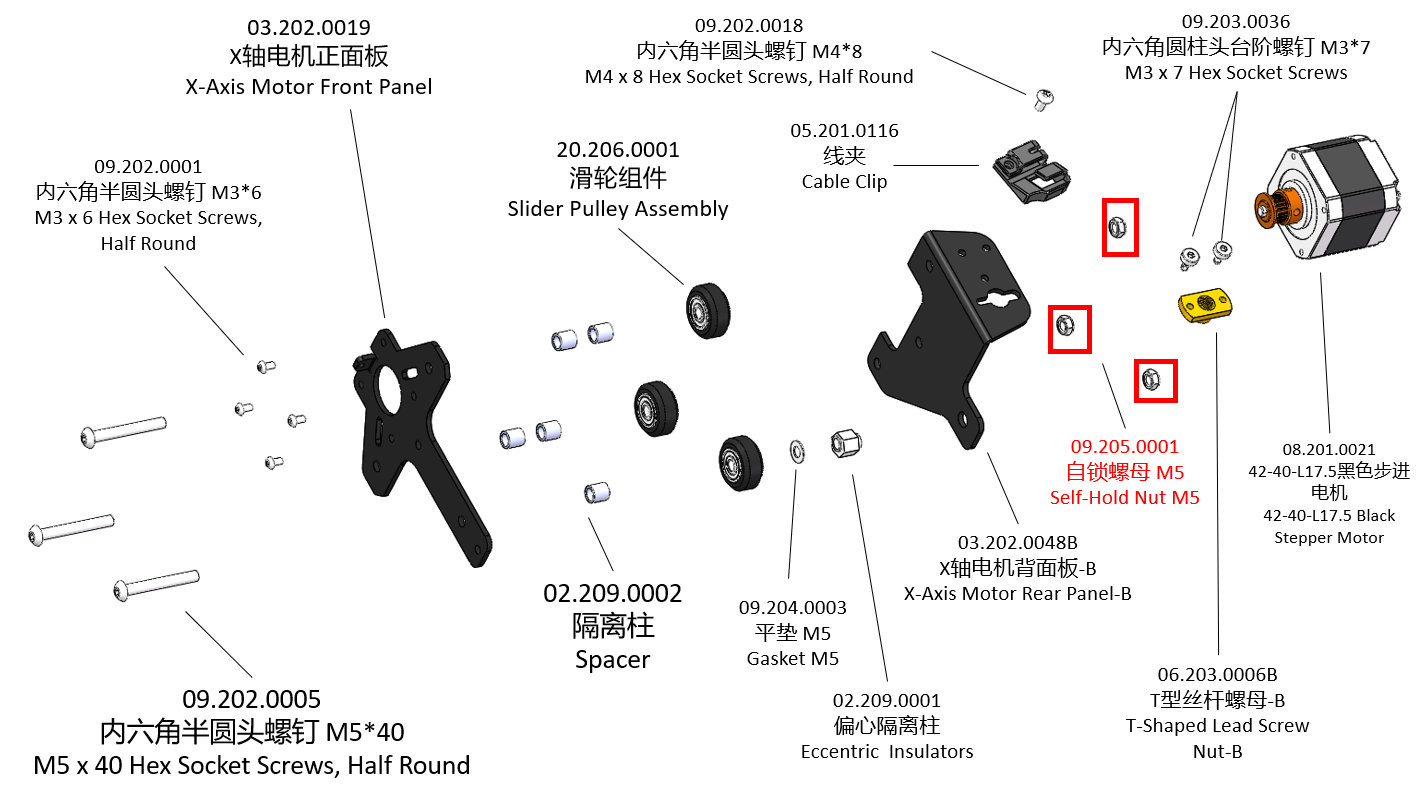

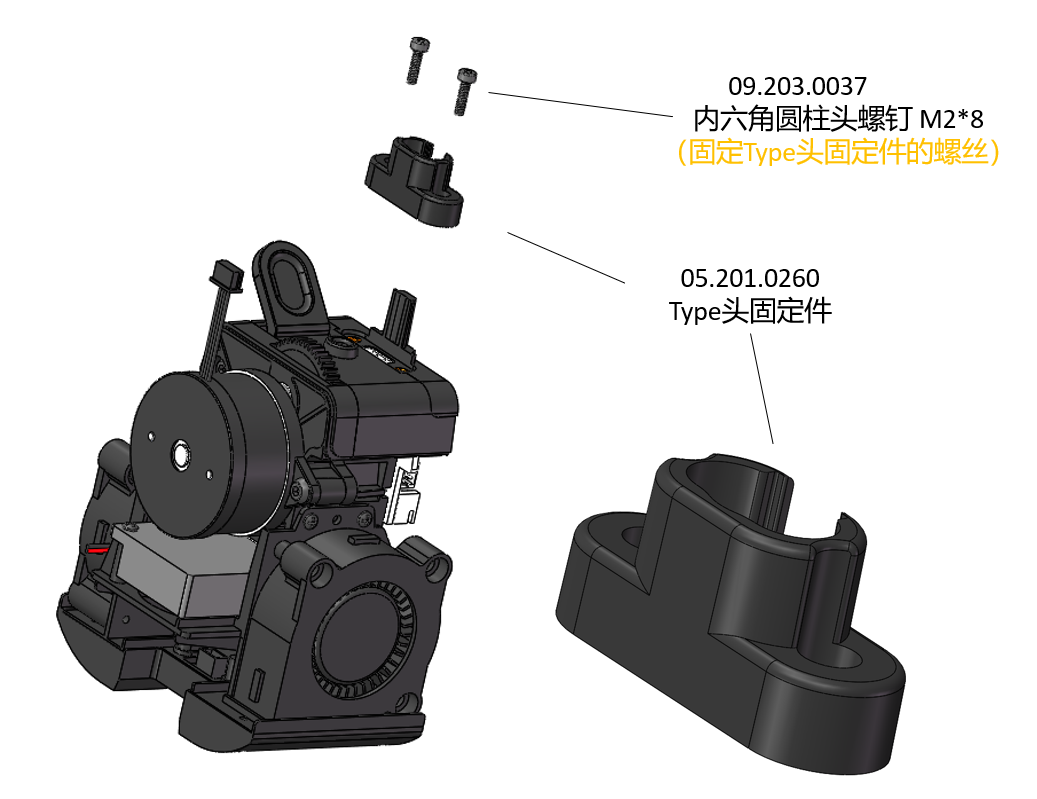

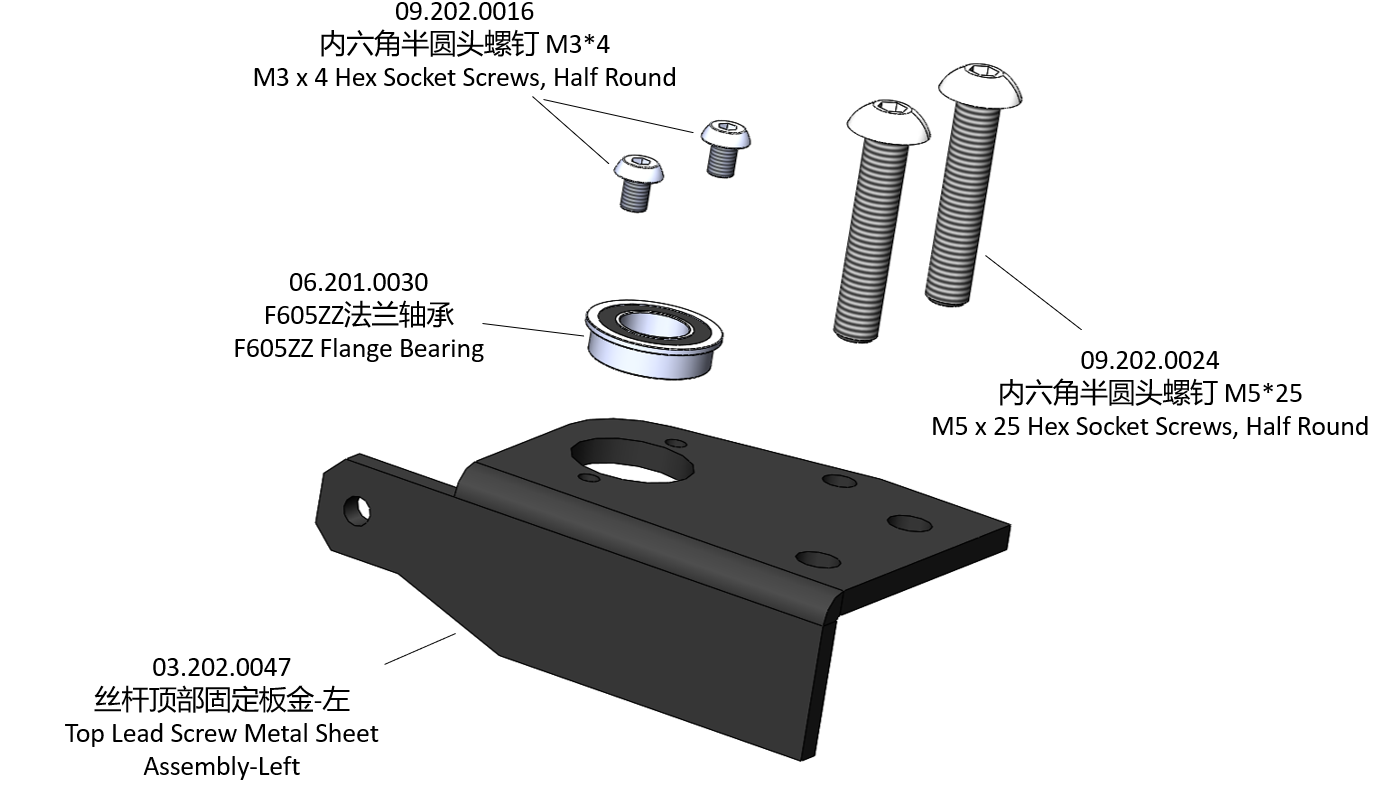

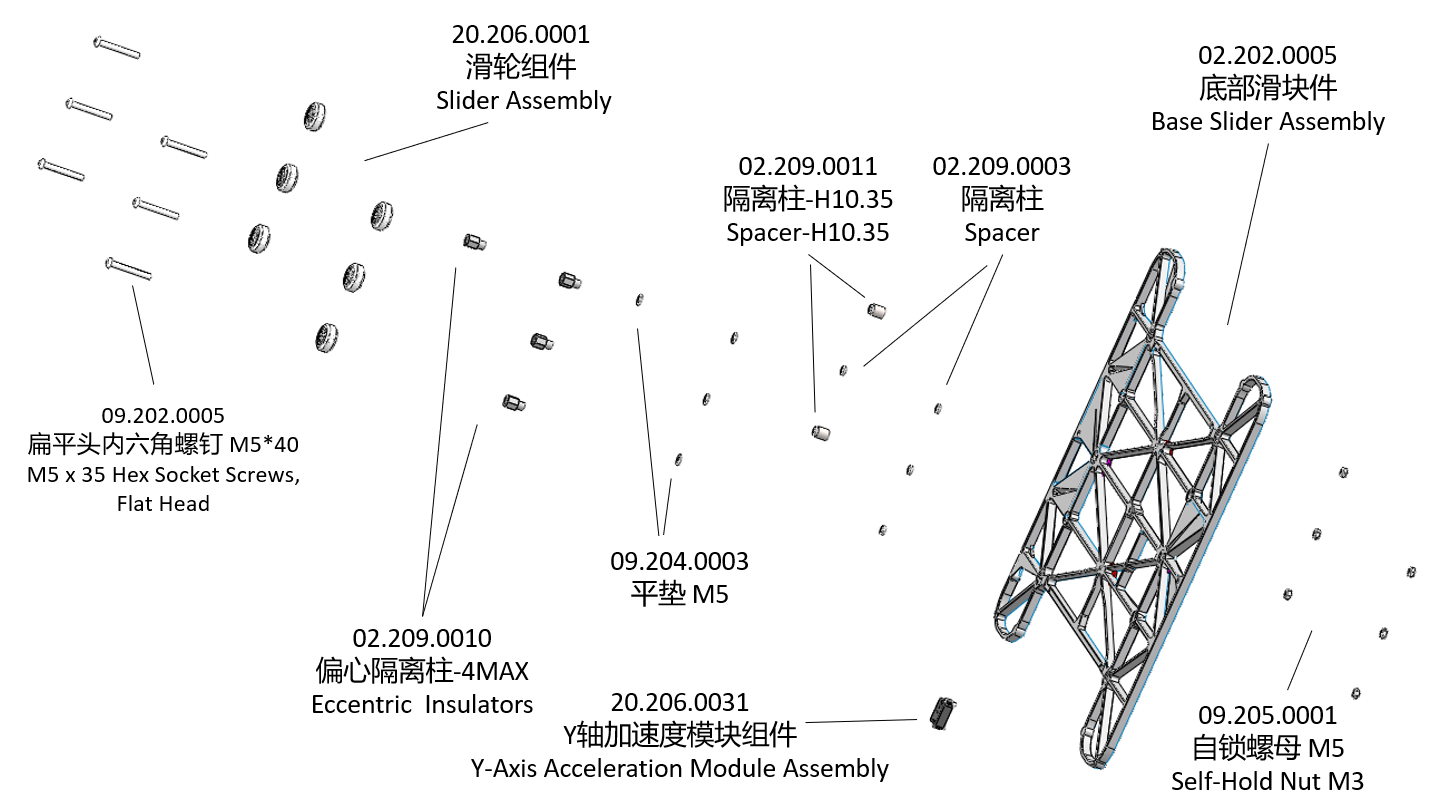

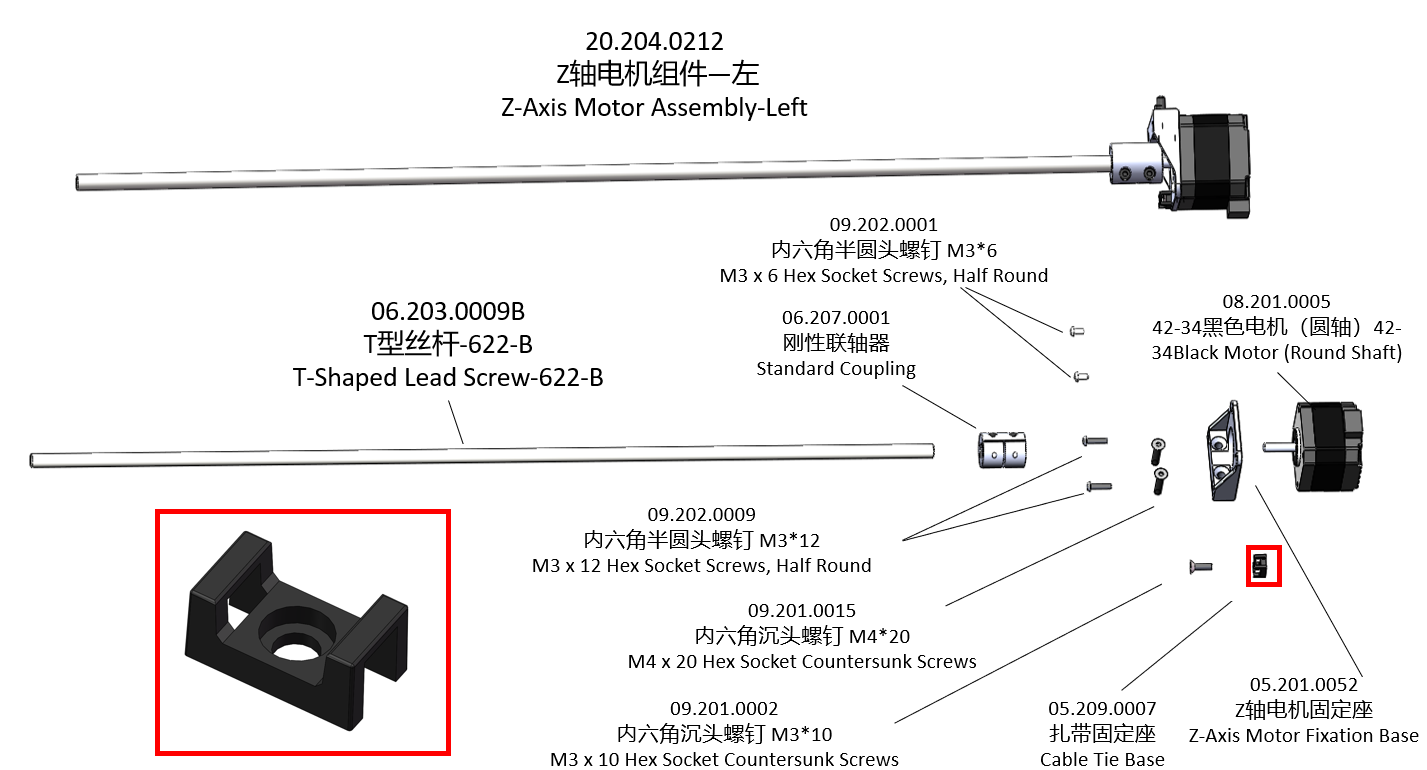

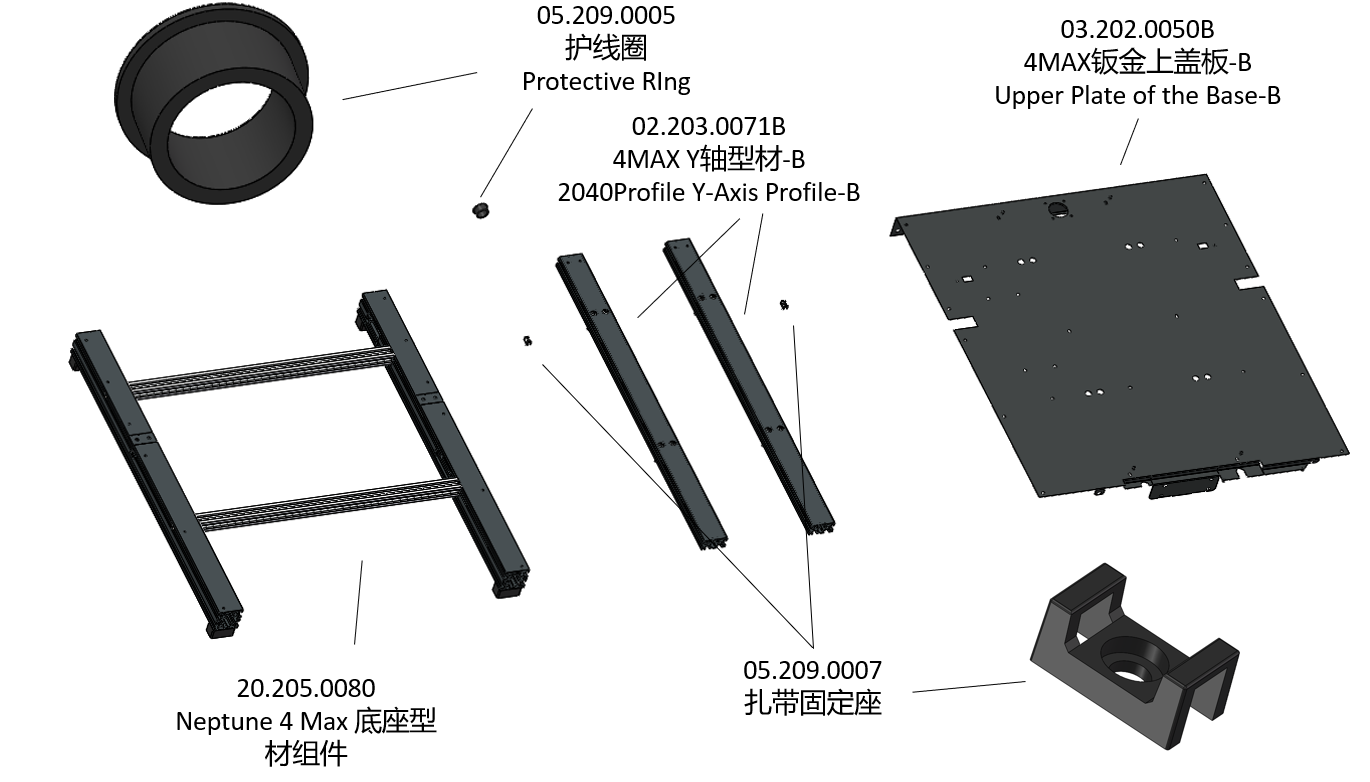

This is a useful reference to see how parts go together and what screws are used to hold them.

A PDF and list of parts we carry are at the bottom of the page.

To replace lost screws, nuts & bolts, look for online vendors of mixed metric screw assortment kits.







Neptune 4 MAXTL4976
001417NOZZLE MAX 0.6MM BRASS [TL4974/TL4976]
001418NOZZLE 0.8MM BRASS [TL4974/TL4976]
001423BLOWER FAN 3010 [TL4970/TL4972/TL4976]
001424BLOWER FAN 4015 [TL4970/TL4972/TL4976]
001426BLOWER FAN 6025 [TL4976]
001427AXIAL FLOW FAN 6010 [TL4976]
001434THERMISTOR [TL4974/TL4976]
001435HEATING ELEMENT CERAMIC [TL4974/TL4976]
001448PEI PLATFORM [TL4976]
001456TIMING BELT X-AXIS  [TL4976]
001471TIMING BELT Y-AXIS [TL4976]
001479NOZZLE ASSEMBLY [TL4976]
001402MAINBOARD [TL4974/TL4976]
001403EXTRUDER ADAPTER BOARD [TL4974/TL4976]
001420POWER SUPPLY [TL4976]
001421SWITCH PROXIMITY [TL4970/TL4972/TL4976]
001440RJ11 CABLE [TL4976]
001442ACCELEROMETER CABLE Y-AXIS [TL4976]
001454DISPLAY SCREEN ASSEMBLY [TL4976]
001458EXTRUDER CABLE ASSEMBLY [TL4976]
001466HOT BED KIT [TL4976]
001475ACCELEROMETER MODULE Y-AXIS TL4974/4976
001680Neptune 4 Max Magnetic base plate [TL4976]
001645Neptune 4 Plus/Max extruder kit TL4974 TL4976
001646Neptune 4 Plus/Max hotend kit TL4974/76
001647Neptune 4 Plus/Max Multi-size brass nozzle pack
(4pcs 0.4mm, 2pcs 0.6mm, 2pcs 0.8mm, 2pcs 1mm) [TL4974/76]
001648Neptune 4 Plus/Max Multi-size hardened steel nozzle pack
(3pcs 0.4mm, 1pc 0.6mm, 1pc 0.8mm) [TL4974] &TL4976
001408NOZZLE 0.4MM BRASS [TL4974/TL4976]
001412NOZZLE 0.4MM HARDENED [TL4974/TL4976]
001413NOZZLE 0.6MM HARDENED [TL4974/TL4976]
001414NOZZLE 0.8MM HARDENED [TL4974/TL4976]
