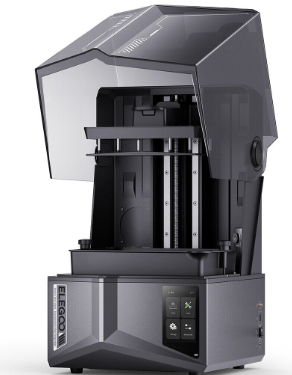

Saturn 4 TL4840, Saturn 4 Ultra12 TL4842, and Saturn 4 Ultra16 TL4844 - Elegoo 3D Printer support EAU – Electus Distribution

Owning a 3D printer is a bit like owning a race car - you are the mechanic as well as the driver, so you'll need to do some maintenance, and occasionally fix things when they go wrong. You'll need to own a PC, have an internet connection, know how to use screwdrivers and spanners, and have the confidence to pull things apart for maintenance and repair.

Elegoo have an excellent collection of support resources to assist you in replacing parts yourself.

Note that some components such as release film are considered consumables that wear as you use them (just like tyres on cars), and are expected to be replaced by the owner when worn out. The LCD, resin tank and build plate have a 6 month warranty, and the printer base structure has a 12 month warranty.

Slicer software

Download slicers from Elegoo

Youtube tutorials for slicers

Support Wiki for Saturn 4 / Ultra

https://wiki.elegoo.com/en/saturn

Common replacement tutorials for Saturn 4

Common replacement tutorials for Saturn 4 Ultra

Tech support resources & tutorials for Saturn 4 Ultra

How to find spare parts for Saturn 4 / Ultra

SATURN 4	TL4840
001500	PFA FILM KIT 5PC TL4828/30/32/40
001517	PFA FILM KIT 5PC TL4830/32/40/42
001494	LIMIT SWITCH UPP SHELL TL4830/32/40/42
001495	LIMIT SWITCH LOW SHELL TL4830/32/40/42
001496	TOUCH SCREEN + CABLE TL4830/32/40/42
001497	LIMIT SWITCH + CABLE TL4830/32/40/42 V3
001498	LIMIT SWITCH + CABLE TL4830/32/40/42 V2
001501	LIMIT SWITCH PCB TL4830/32/40/42
001503	CC BOARD [TL4840]
001504	MOTHERBOARD [TL4840]
001505	T-TYPE SCREW MOTOR [TL4840]
001506	CC BOARD TO LIGHT BOARD CABLE [TL4840]
001515	COVER PROTECTIVE SATURN 2/3/4 40/42/44
001663	Saturn 4 Z-axis limit switch wire TL4840
001664	Saturn 4 Touch screen cable TL4840
001696	Saturn 4 Display Kit

Ultra 12k	TL4842
001507	VAT KIT [TL4842]
001508	BUILD PLATE KIT [TL4842]
001510	PFA FILM KIT 5PC [TL4842]
001511	VAT KIT [TL4842]
001512	BUILD PLATE KIT [TL4842]
001517	PFA FILM KIT 5PC TL4830/32/40/42
001494	LIMIT SWITCH UPP SHELL TL4830/32/40/42
001495	LIMIT SWITCH LOW SHELL TL4830/32/40/42
001496	TOUCH SCREEN + CABLE TL4830/32/40/42
001497	LIMIT SWITCH + CABLE TL4830/32/40/42 V3
001498	LIMIT SWITCH + CABLE TL4830/32/40/42 V2
001501	LIMIT SWITCH PCB TL4830/32/40/42
001509	LCD SCREEN KIT [TL4842]
001513	LCD SCREEN KIT [TL4842]
001514	MAINBOARD [TL4842]
001515	COVER PROTECTIVE SATURN 2/3/4 40/42/44
001516	TOUCH SCREEN + CABLE [TL4842]
001652	BUILD PLATE KIT [TL4842]
001668	Saturn 4 Ultra 12K Touch screen cable TL4842

Ultra 16k	TL4844
001515	COVER PROTECTIVE SATURN 2/3/4 40/42/44
001659	S4U/S4U 16K X-axis limit switch wire TL4844
001660	S4U/S4U 16K Z-axis limit switch wire TL4844

Technical Support from the manufacturer

Visit this page: https://www.elegoo.com/pages/contact-us

Fill out the form with your details, date of purchase, and they will get back to you.
